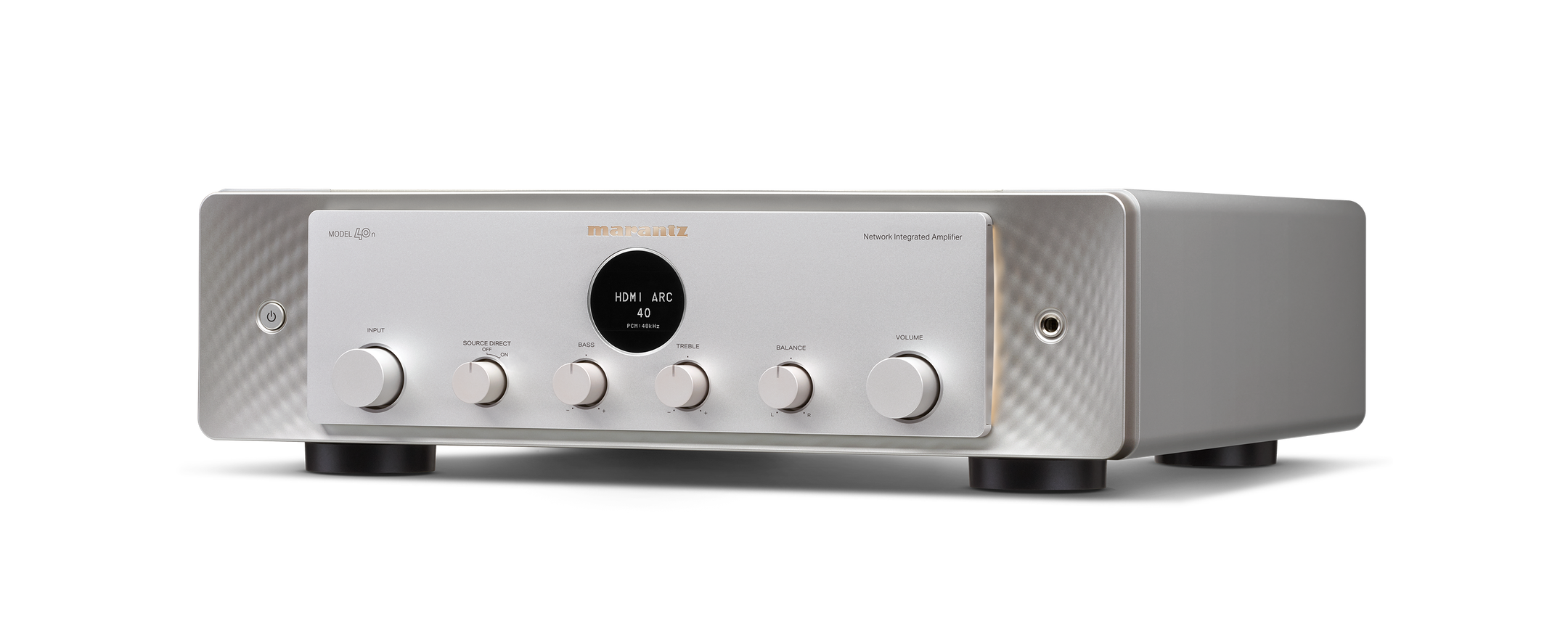

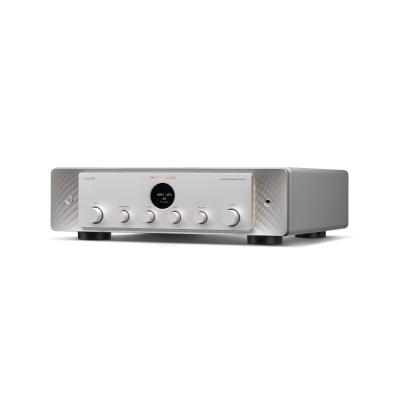

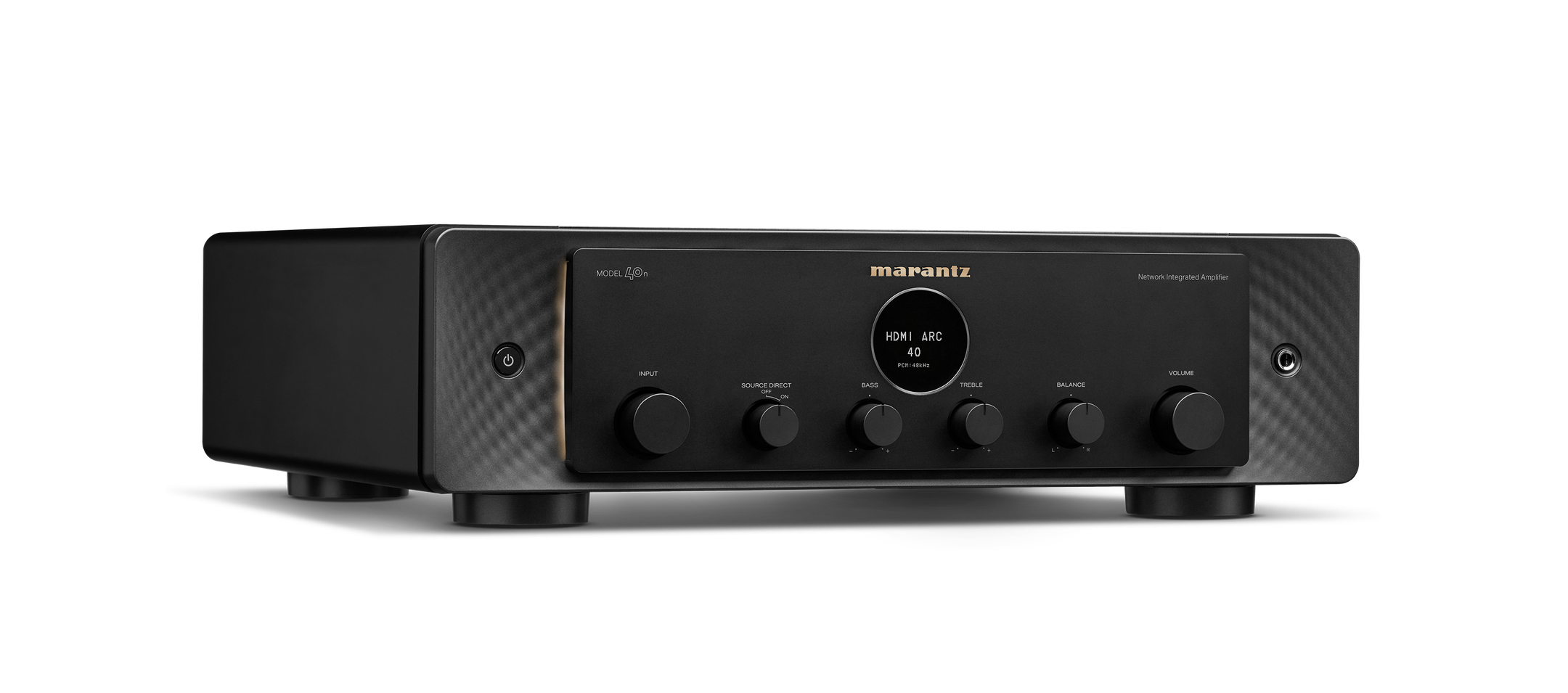

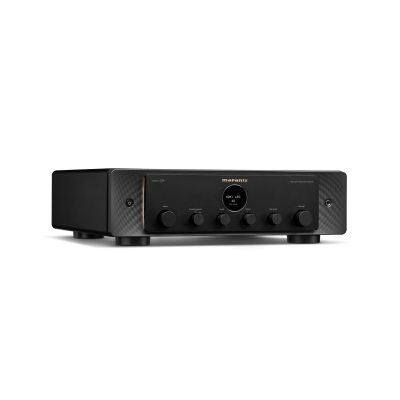

Marantz Model 40n е висок клас мрежов стерео усилвател смощност 2х70W при 8 Ohm, HDMI ARC вход и вграден HEOS за стрийминг на музика от различни онлайн платформи, поддръжка на AirPlay 2, Bluetooth и Spotify Connect.
Model 40n съчетава класическата аналогова технология на Marantz с модерни цифрови функции. Отличава се с елегантен дизайн и първокласно изпълнение.
- Майсторски дизайн
- 2.1 канала
- 70W на канал
- Специално разработен HDAM
- 1 HDMI вход с поддръжка на ARC
Гаранция 2 години
| Size and Weight | |
|---|---|
| Dimensions (WxDxH) | 443mm x 432mm x 130mm |
| Weight | 16.7kg |
Features |
|
| Channels | 2 |
| Current Feedback Topology | Yes |
| Full balanced circuitry architecture | No |
| Double Mono Power Amp construction | No |
| Phono EQ: Standard / Marantz Musical / Marantz Musical Premium | No / Yes / No |
| Digital in: USB-B / optical / coaxial / USB-A | No /1 / 1 / 1 |
| Sample Rate digital In | 192 kHz / 24-bit |
| USB-A: DSD / WAV / FLAC / AIFF / ALAC | <5.6 / 192 / 192 / No / 192 |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| USB-B PCM sample rate | No |
| DAC chip | ES9016K2M |
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| Ground isolator for DAC Mode operation | No |
| Tuner: DAB / DAB+ / FM (RDS) | No |
| Bluetooth / aptX / NFC | Yes / No / No |
| Streaming audio from PC | Yes |
| Wi-Fi / Wired LAN | Yes / Yes |
| Internet radio | Yes |
| AirPlay 2 | Yes |
| Roon Tested | Yes |
| Spotify Connect* / Tidal* / Deezer* / others * | Yes / Yes / Yes / Yes |
| Amazon Prime Music* / Pandora* | Yes / No |
| HEOS Multiroom and Streaming | Yes |
| Voice Control - Works with Amazon Alexa | Yes |
| Voice Control - Google Assist / Apple Siri | Yes |
| Voice Control - Microphone built-in | No |
| DSD-Audio network streaming | Yes |
| Lossy formats MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF | Yes / Yes / Yes / Yes / No |
| Gapless Playback | Yes |
| Remote APP: iDevice / Android | Yes / Yes |
| Analog Mode | No |
| HDAM version | SA3, SA2 |
| Power Transformer: Toroidal / El | Yes / No |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric PCB Layout | Yes |
| Aluminium extrusion heat sink | Yes |
| Copper Plated Chassis | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
| Double Layerd Bottom Plates | Yes |
| Low Noise OLED display | Yes |
Others |
|
| Marantz Musical Digital Filtering | Yes |
| Linear Drive Power Supply | Yes |
| Liniear volume control | MUSES 72323 |
| BI-AMP and Multichannel option | No |
| Shottky diodes | Yes |
| Input buffer amp (all inputs / CD only) | No / No |
| System block shielding: Copper / metal / none | No / Yes / No |
| Low noise LCD display | No |
| Source Direct | Yes |
| Power Amp direct | Yes |
| 5mm aluminium top plate | No |

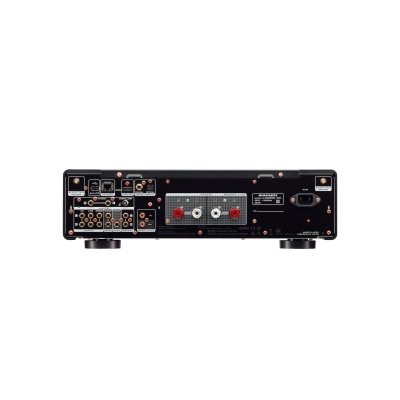

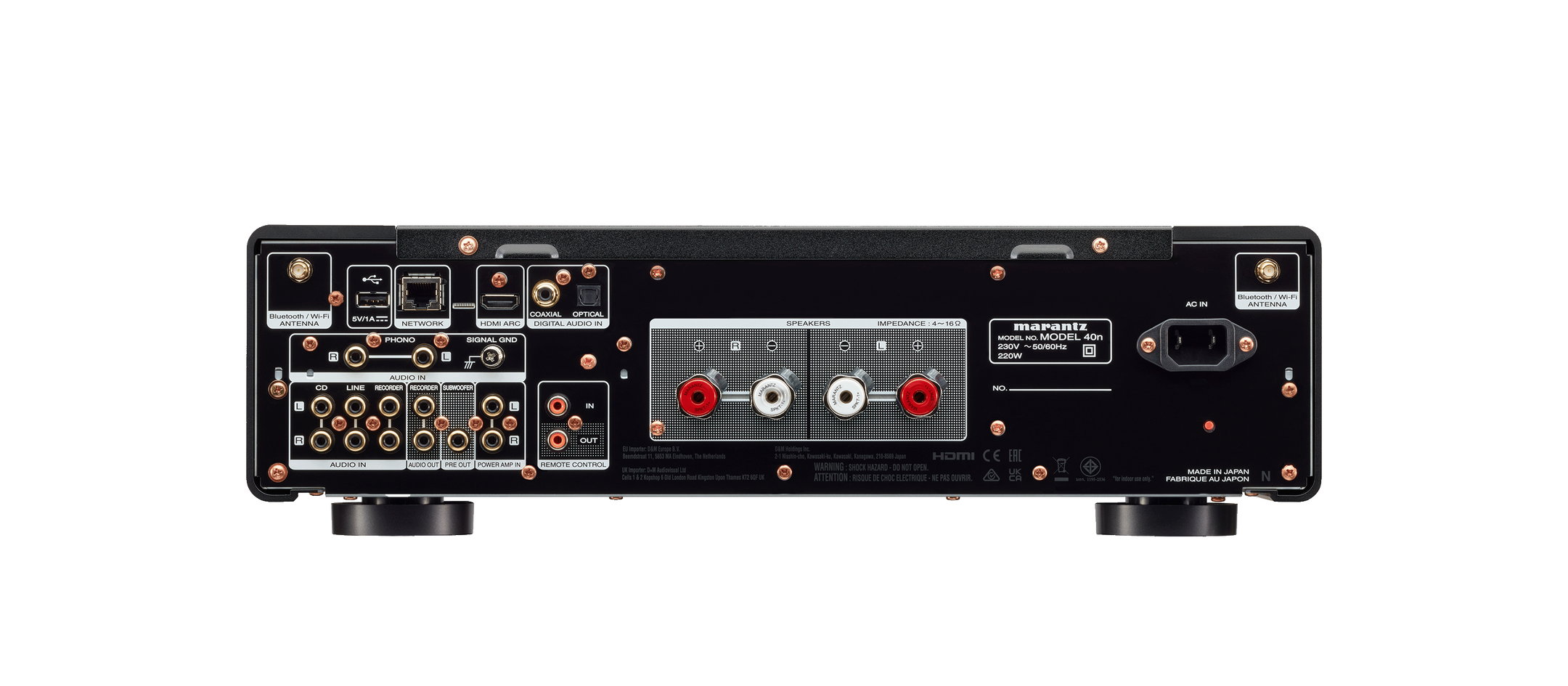

Inputs/Outputs |
|
| Audio Inputs | 4 |
| Digital in: USB-B / optical / coaxial / USB-A | No / 1 / 1 / 1 |
| Auto Power On by digital input signal | Yes |
| TV remote learning | No |
| Phono Input: MM / MC | Yes / No |
| Audio Outputs | 1 |
| Balanced In / Out | No |
| Pre-out / Main-in | subwoofer / No |
| Power Amp Direct IN | Yes |
| HDMI: inputs / outputs | 1 / No |
| Gold Plated Cinch | Yes |
| Speaker A / B | No |
| Speaker Terminals | Marantz SPKT-1+ |
| Number of terminals | 2 |
| D-Bus | Yes |
| Floating Control Bus (3.5 mm mono jack x 2) | No |
| Headphone Out | Yes |
| Headphone Gain Control (low / mid / high) | No |
Specifications |
|
| Power Output (8 / 4 Ohm RMS) | 70W / 100W |
| Frequency Response | 5Hz-100 kHz |
| Total Harmonic Distortion | 0.02 % |
| Damping Factor | 100< |
| Input Sensitivity: MM | 1.6 mV / 47 kOhm |
| Input Sensitivity: MC | No |
| Signal to Noise Ratio: MM/MC | 87 dB / No |
| Input Sensitivity: High level | 220 mV / 16 kOhm |
| Input Sensitivity: Balanced High level | No |
| Signal to Noise Ratio: High level | 113dB |
| Input Sensitivity: Power Amp Direct IN | 1.5 V / 15 kOhm |
| Signal to Noise Ratio: Power Amp Direct IN | No |
General |
|
| Available Colors: Gold / Silver / Black / Silver-Gold | No / No / Yes / Yes |
| Metal Front Panel | Yes |
| Power Consumption | 220W |
| Standby Consumption | 0.3W |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Remote Control | RC005PM |
| System Remote Function | Yes |
Производител:
Marantz
Модел:
Marantz Model 40n
Размери - В / Ш / Д:
130 x 443 x 432
Тегло:
16,7
