SB-1000 Specifications

Subwoofer Specs:

• Cabinet Dimensions: 330mm x 330mm x 330mm

• Overall Dimensions: 345mm x 330mm x 355mm  (includes feet, grille, amplifier).
• Weight (unboxed): 12.2kg

• Shipped Dimensions: 482mm x 457mm x 457mm

• Shipped Weight: 15.4 kg
• Rigid and strong cabinet construction.
• Premium black ash

• Front-firing 12" driver.

Driver Specs:

• SVS 12” high-performance driver.
• FEA-optimized motor technology for low distortion.
• High-power voice coil for excellent thermal management.
• Long-throw suspension for high output at deep frequencies.
• Lightweight cone for enhanced sensitivity and transient response.
• Rubber surround for durability and long-life.
• Dual high-grade ferrite magnets.
• Vented pole piece for greater cooling and low noise.

Amp Specs:

• Sledge STA-300D with 300 watts RMS continuous power (720 watts peak dynamic power).
• Efficient and cool-running Class D topology.
• 300 watts (720 watts peak dynamic).
• Green standby mode with less than 0.5 watts consumption.
• Detachable power cord with main power switch.
• RoHS compliant, lead-free construction and world-wide safety certifications.
• Auto-On / On switch.
• DSP control for accurate response and refined behavior under all operating conditions.
• Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.
• Stereo speaker level 5-way binding post input connections.
• Continuously variable low pass filter frequency with disable/LFE setting.
• Continuously variable volume and phase controls.

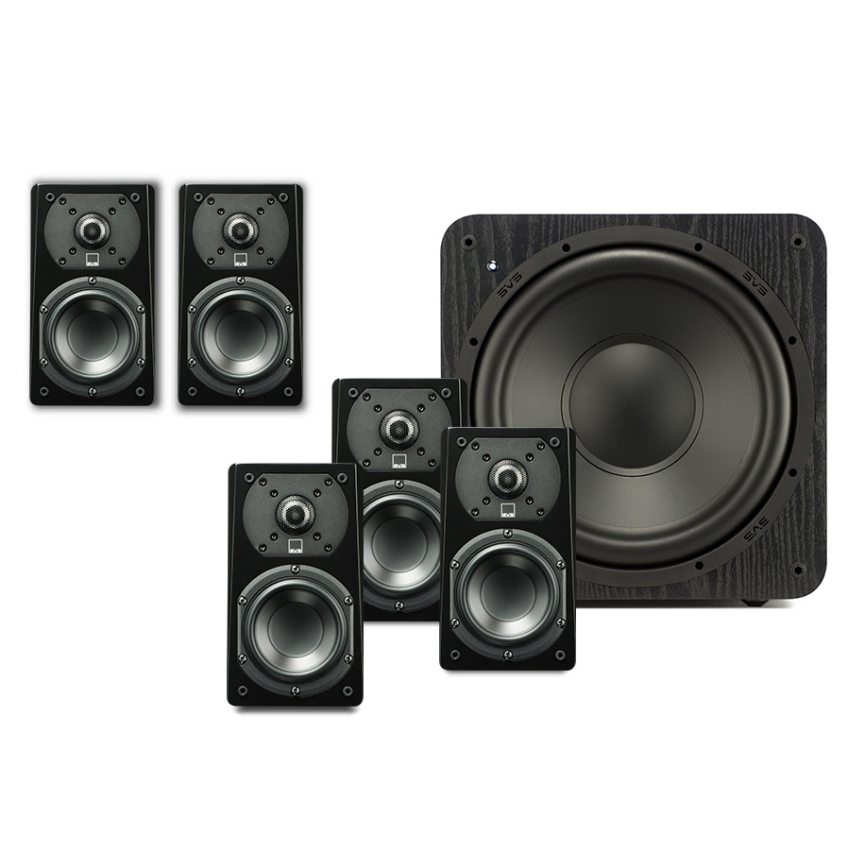

Prime Satellite Speaker Specifications

Loudspeaker Physical Description:

• Satellite Loudspeaker
• Black ash and piano gloss black finish options.
• 5-way binding posts.
• 1” wide-flared rear-firing port.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).

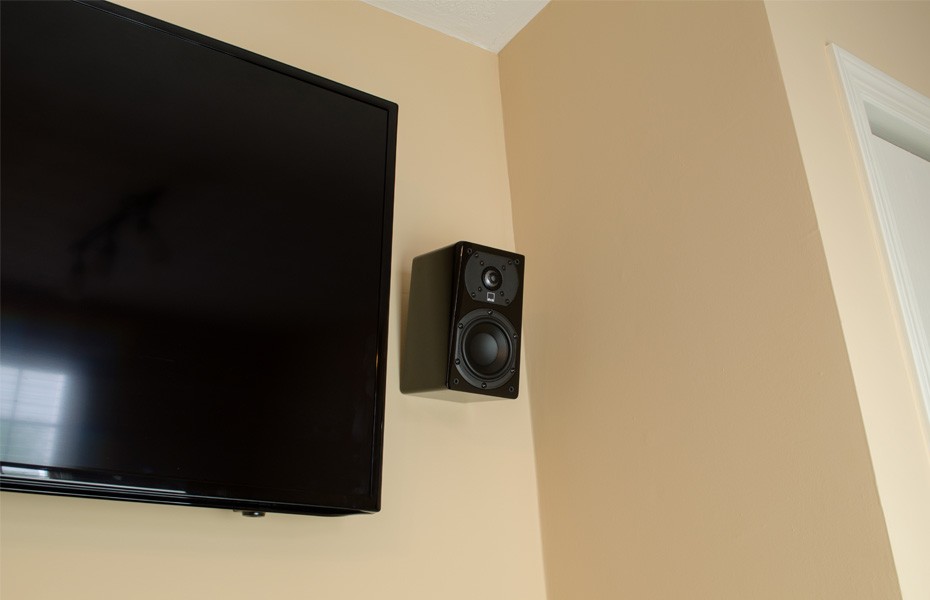

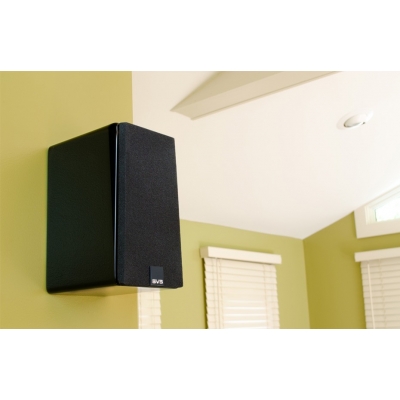

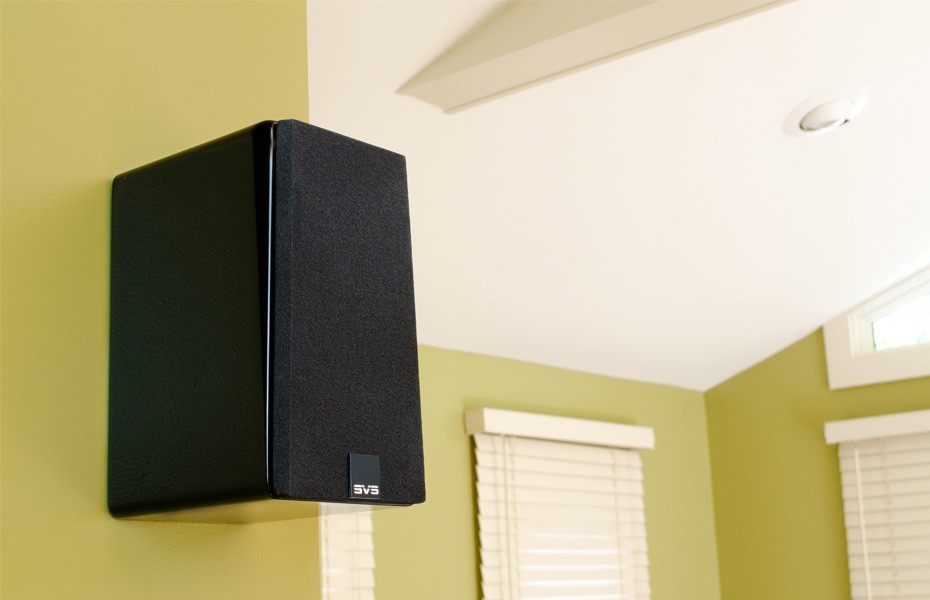

• Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off).
• Cabinet Dimensions: 222mm (H) x 124.5mm (H) x 140.5mm (D)
• Weight Unboxed:  2.94 kg

Driver Array and Technical Highlights:

• 1" aluminum dome tweeter:
  • FEA-optimized diffuser delivers airy and unveiled presentation.
  • Aluminum dome for exceptional transient response.
• 4.5" woofer:
  • Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior.
  • Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response.
  • Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer.
  • Vented voice coil former minimizes air compression artifacts.

SoundMatch Crossover Network:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Crossover network delivers outstanding phase coherency and time domain behavior.
• Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Acoustically transparent and FEA optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 69 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-150 watts.
