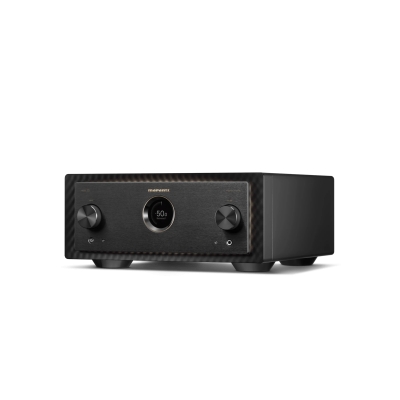

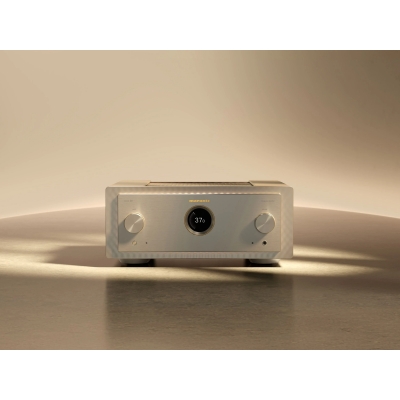

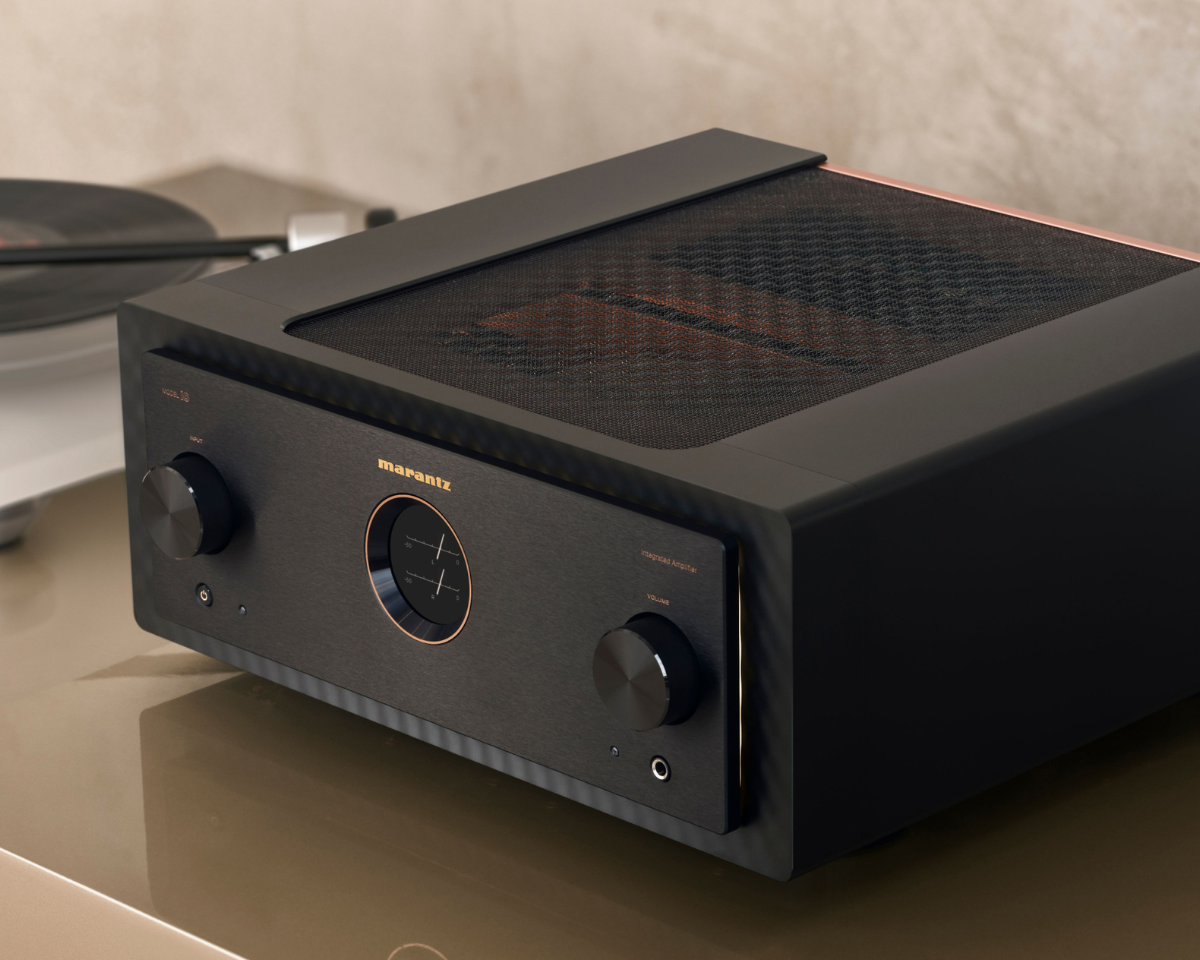

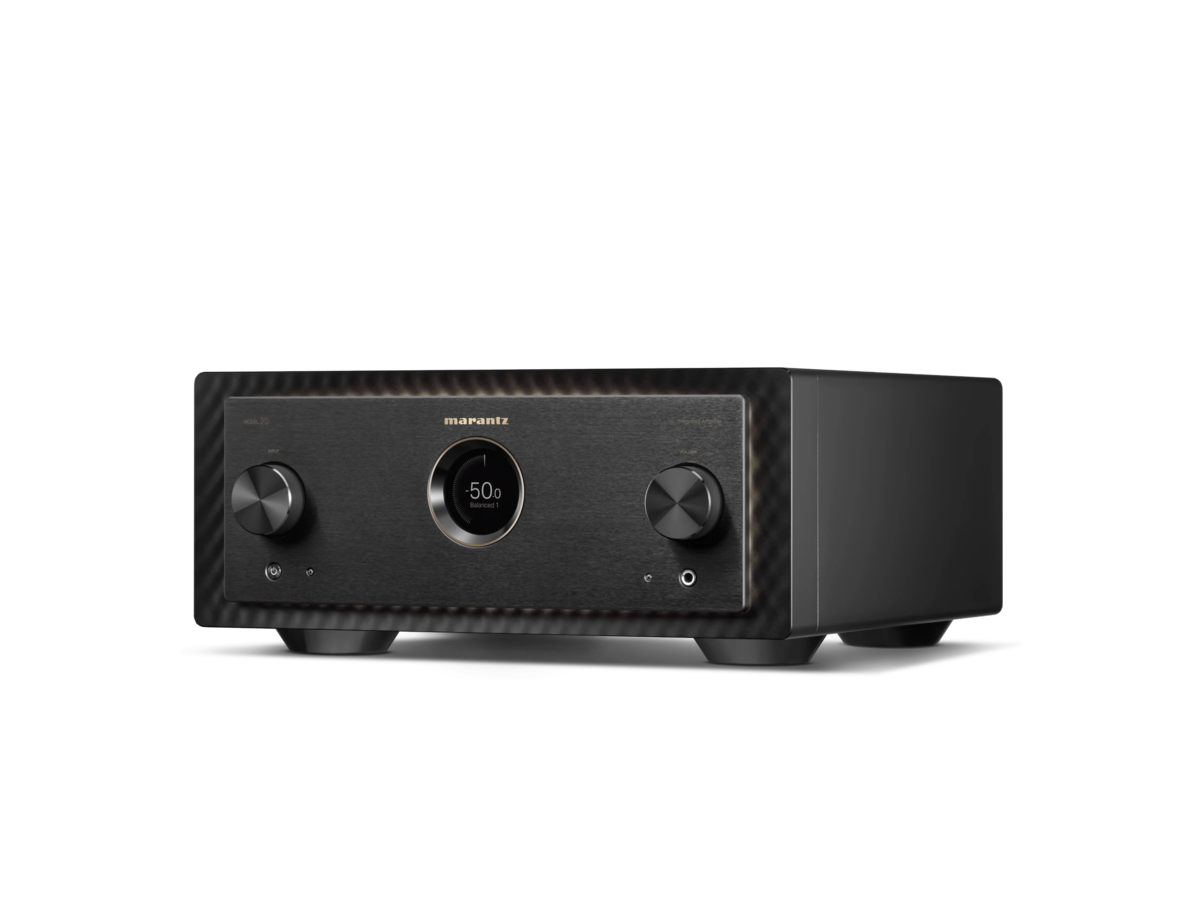

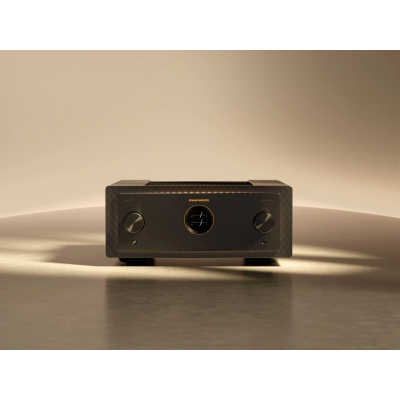

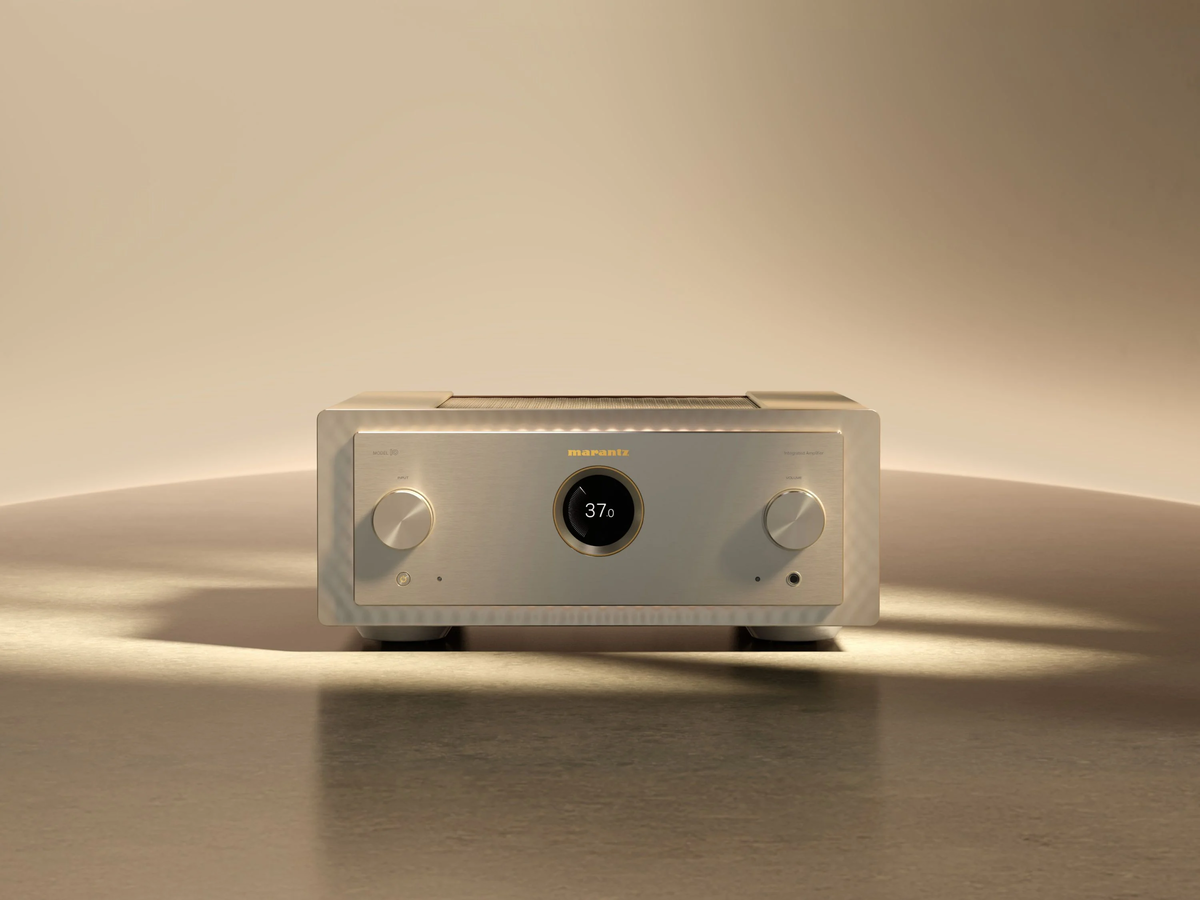

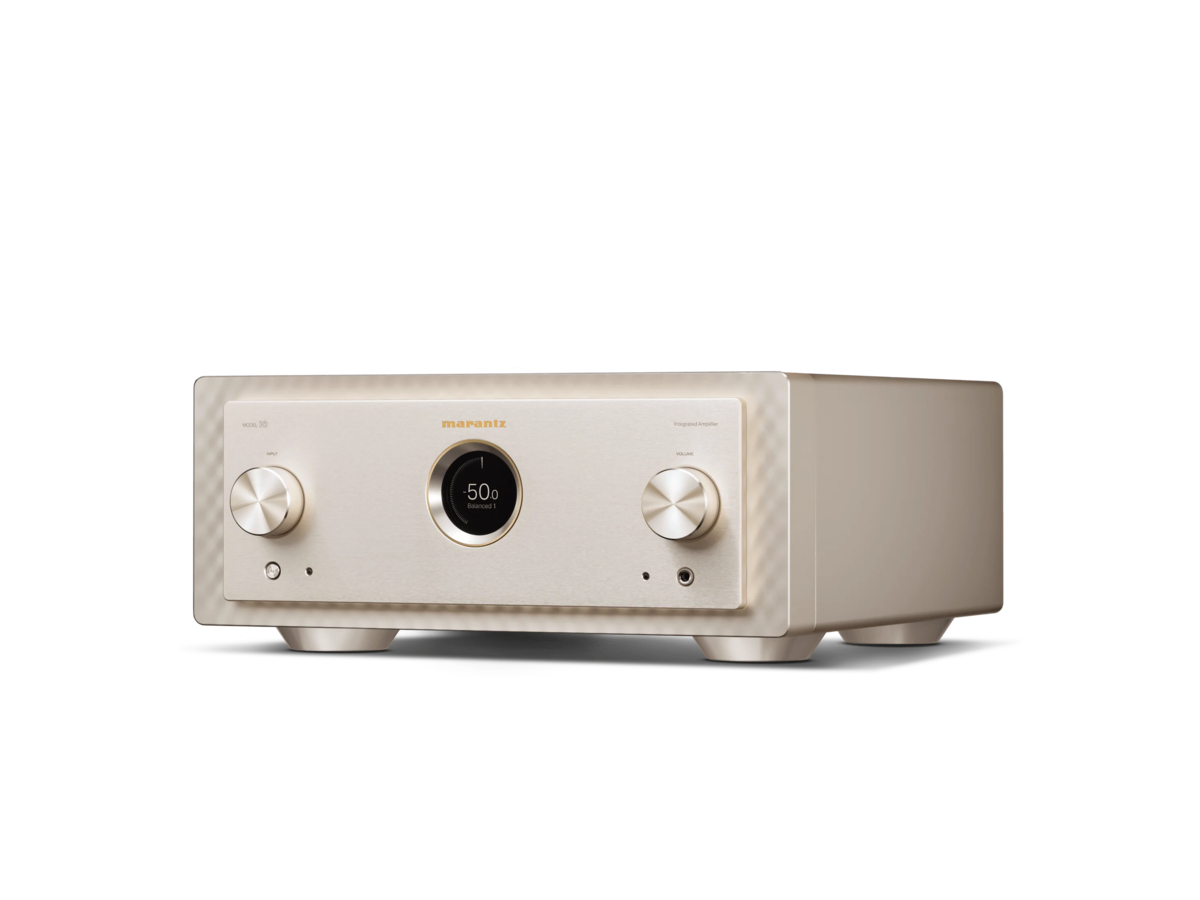

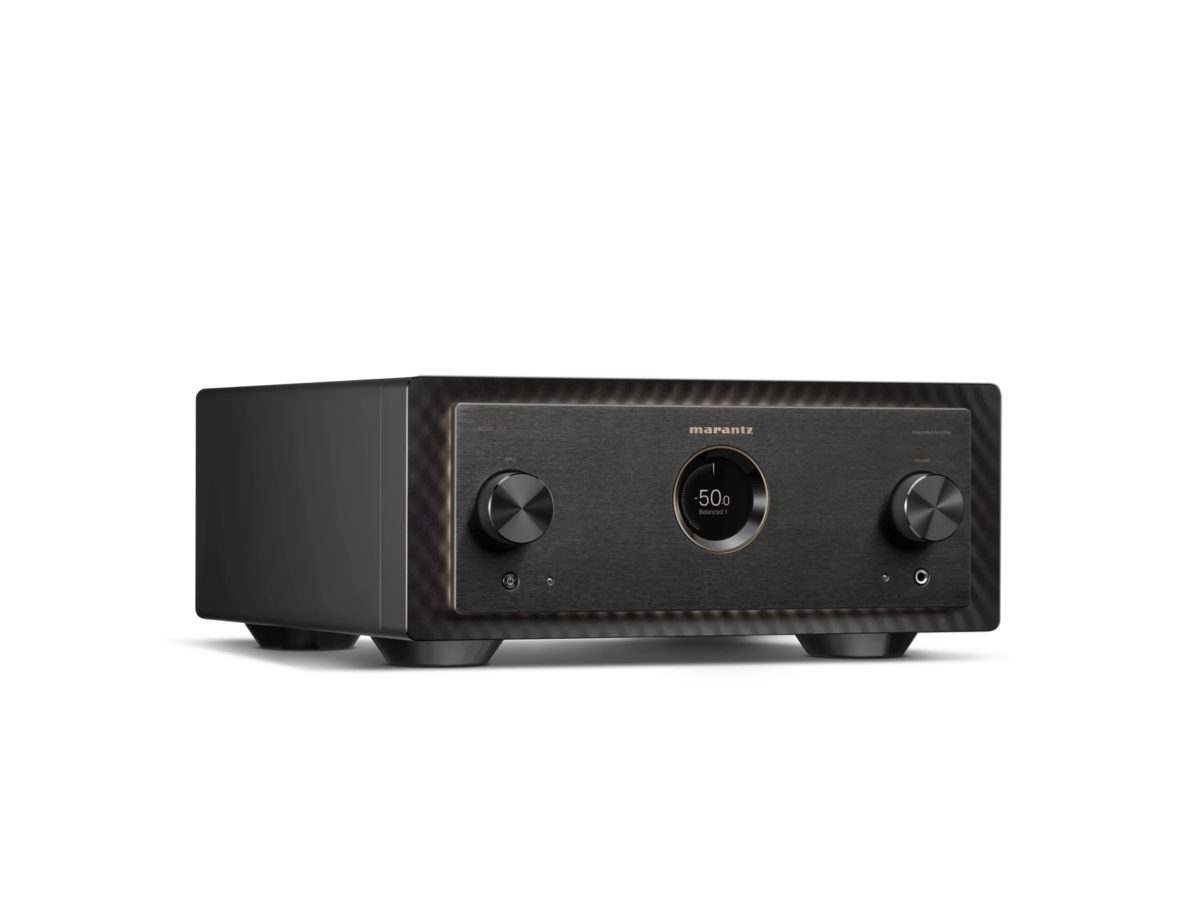

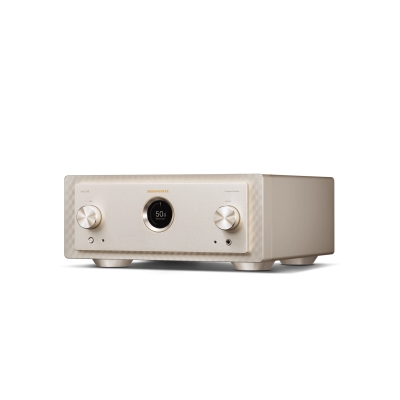

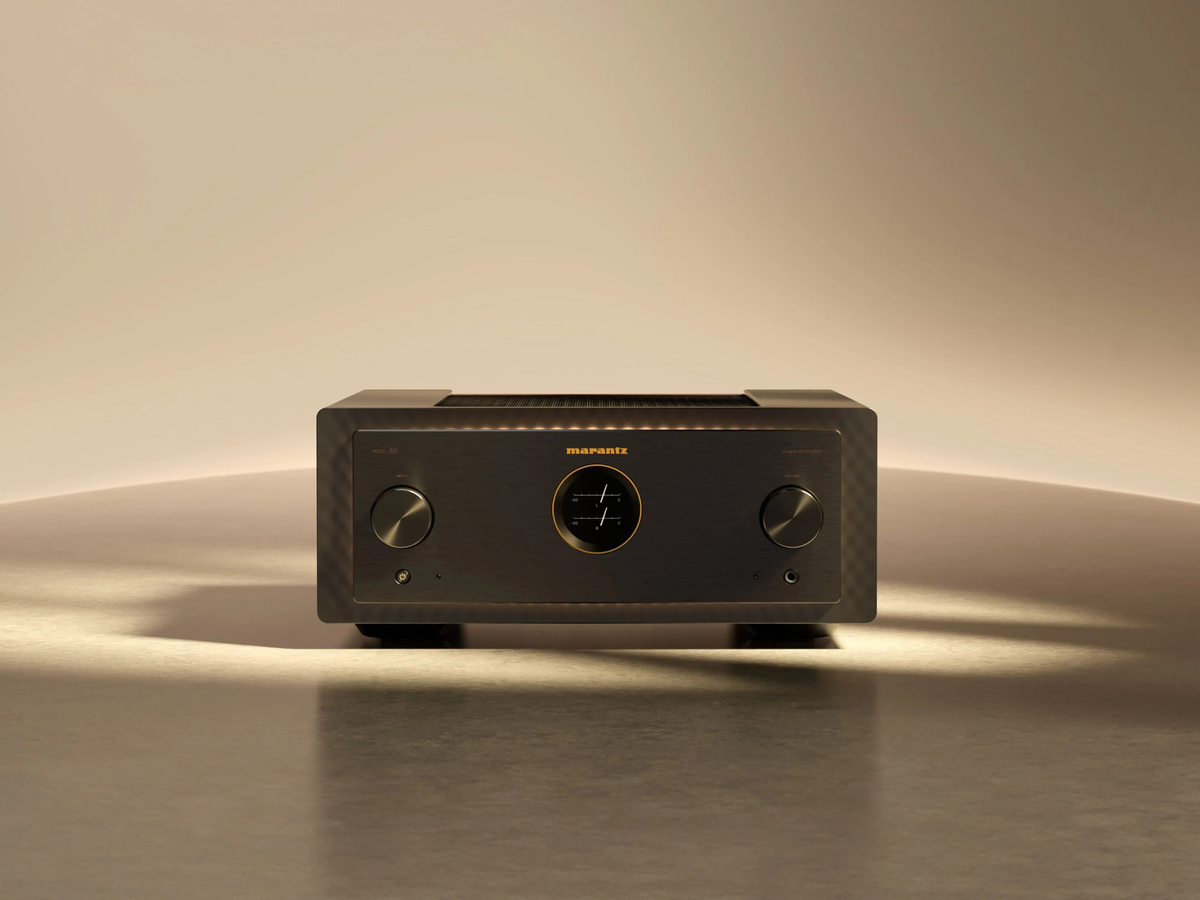

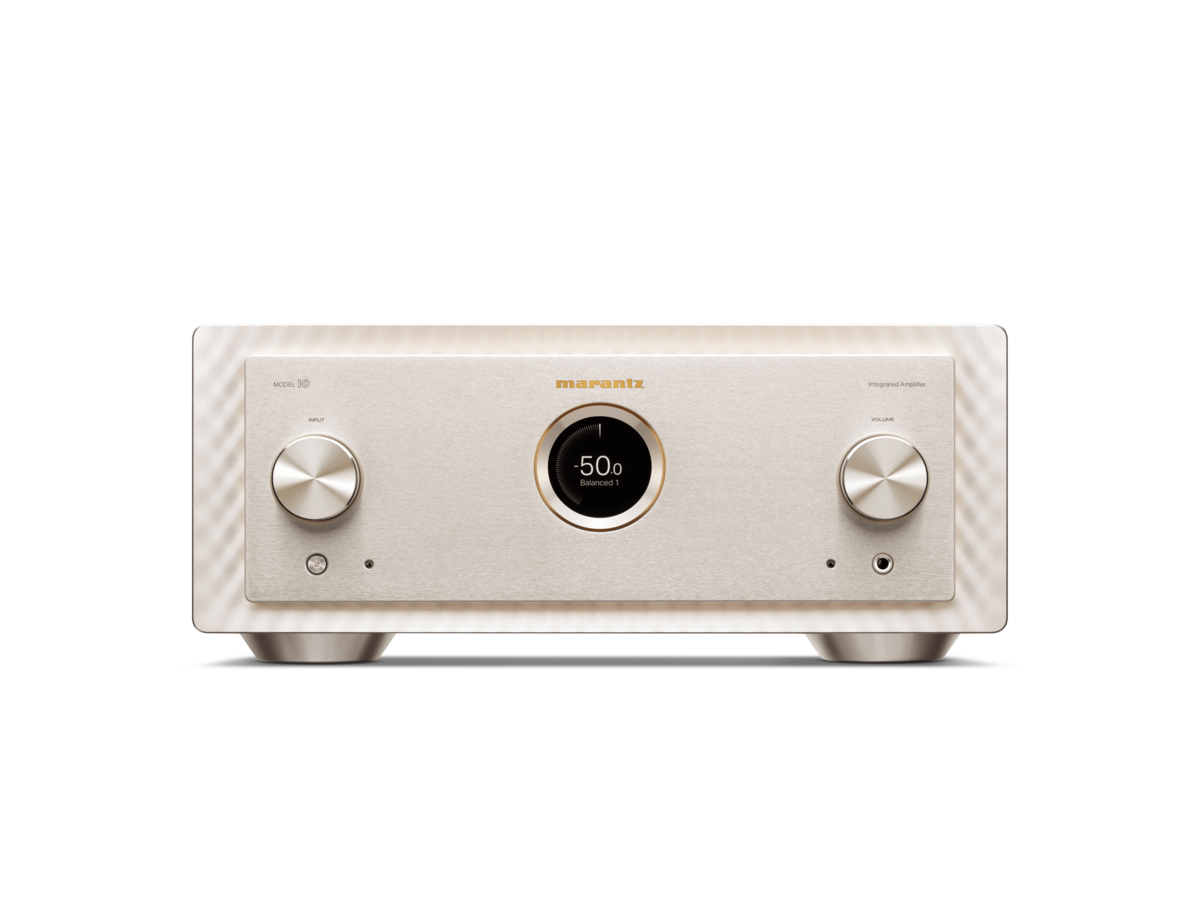

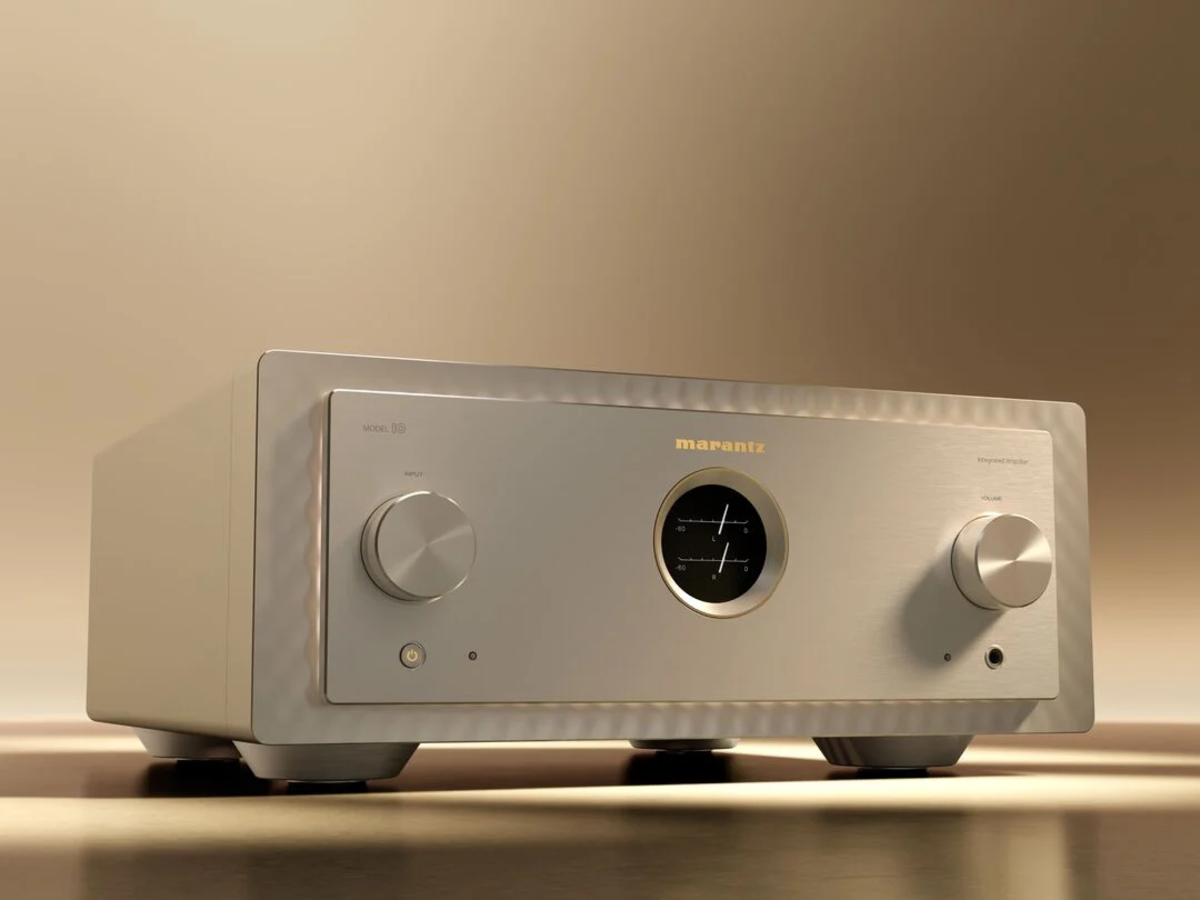

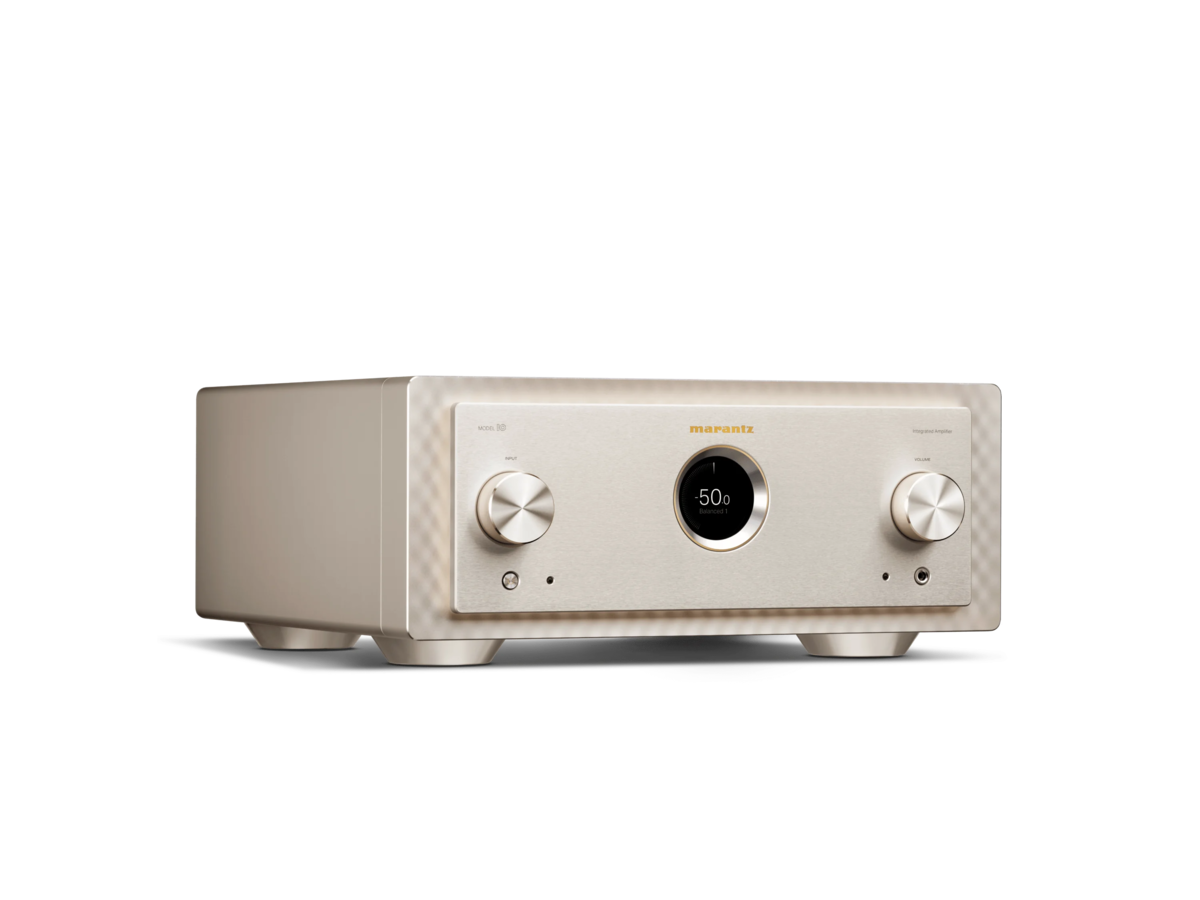

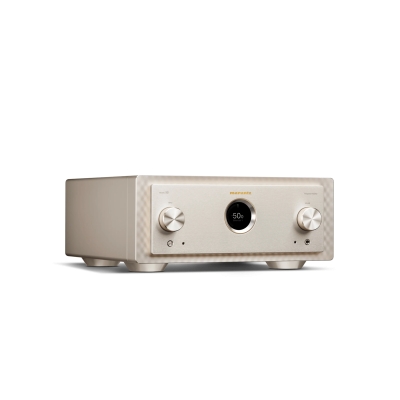

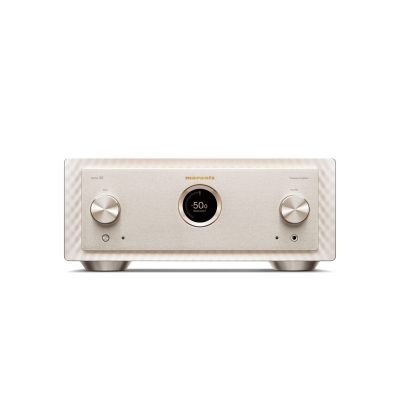

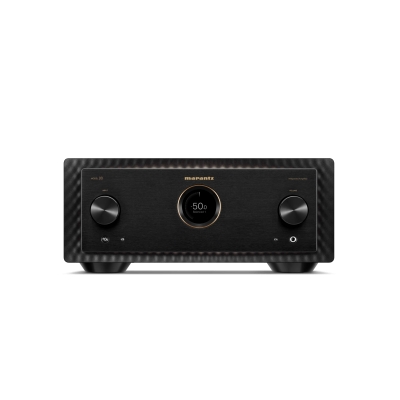

MODEL 10 e Референтен интегриран усилвател с мощност 250 W и изцяло ново захранване Marantz SMPS
MODEL 10 е новият еталон в проектирането на усилватели. Благодарение на новоразработената си симетрична dual-mono топология, това е най-мощният и високопроизводителен усилвател на Marantz, създаван някога!
- 2 канала
- 250 вата на канал

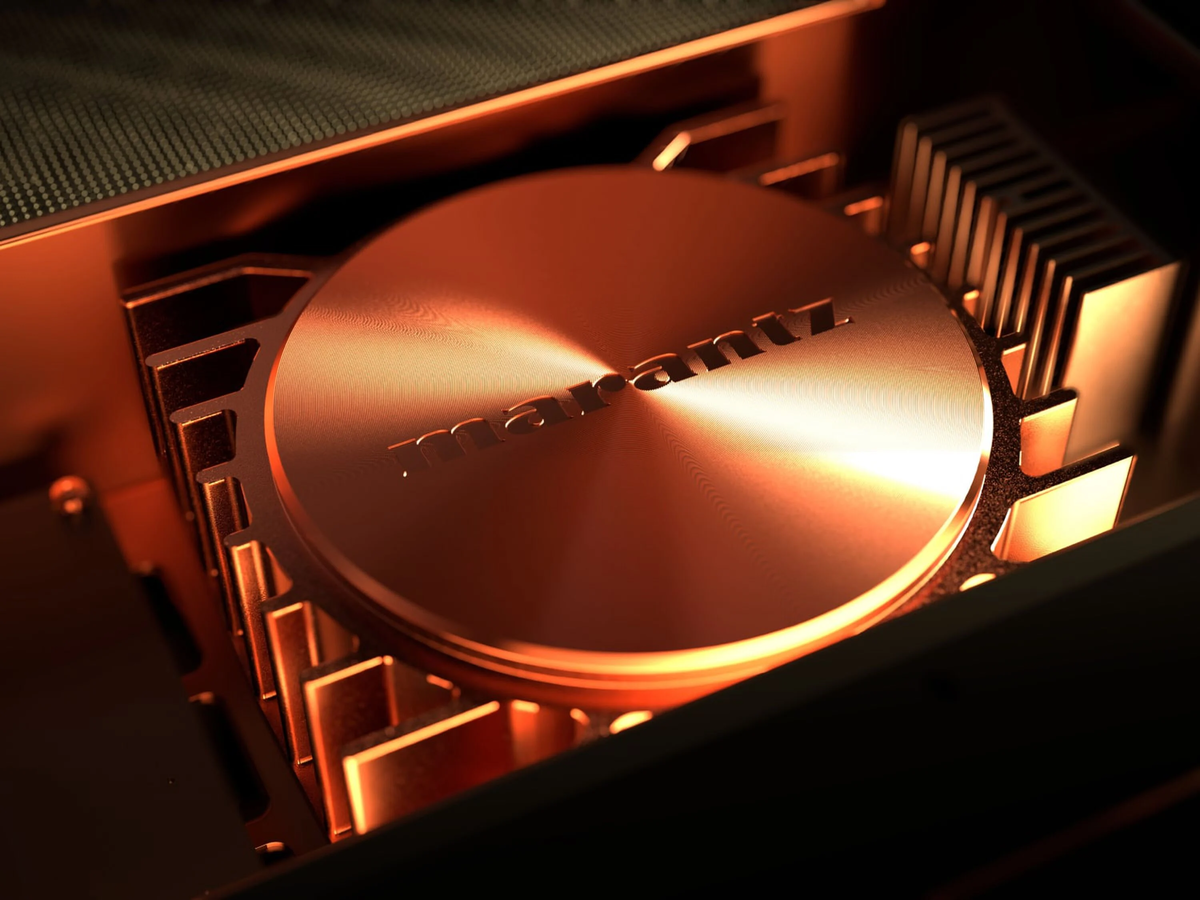

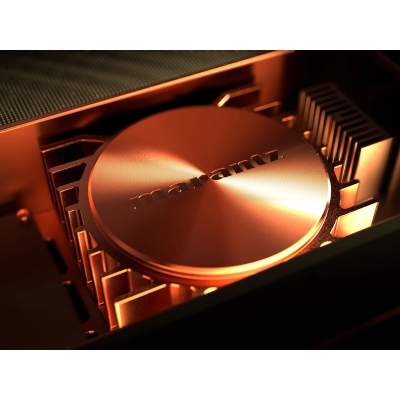

- Изцяло ново захранване (SMPS) от Marantz
- Напълно балансирани усилватели с двойно моно (dual mono) конструкция
- Фоно вход (MM/MC)

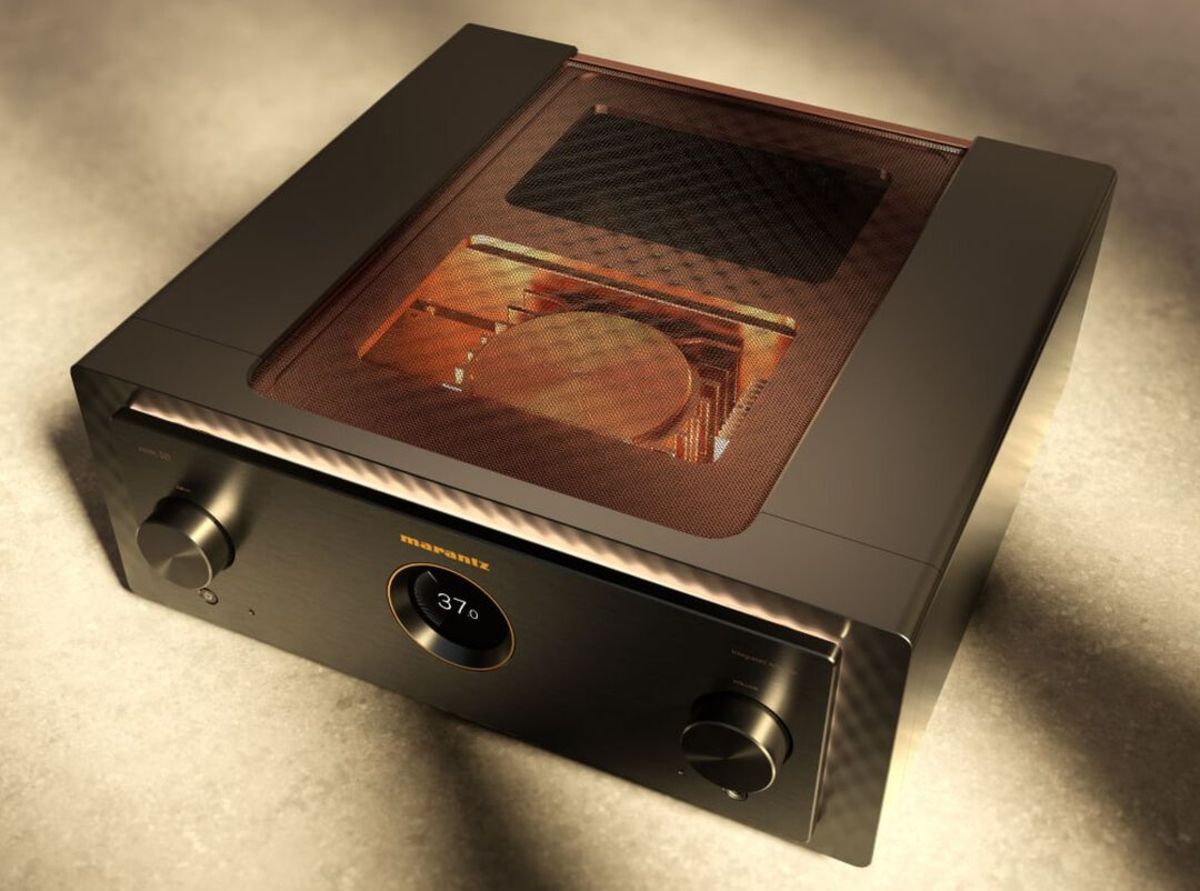

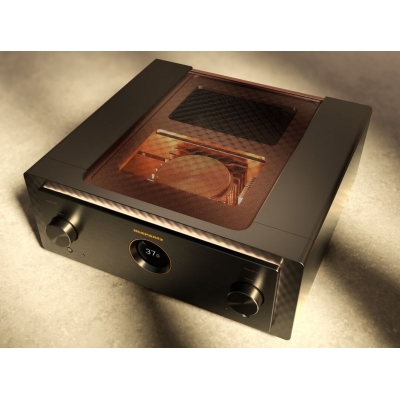

- Шаси с медно покритие
Гаранция 2 години
| Audio | |
|---|---|
| Rated Output Power | 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %) 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %) |
| Speaker Impedance | 4~16ohm |
| Frequency Response | 5Hz~60kHz +0dB/-3dB 20Hz~20kHz +0dB/-0.3dB |
| Total Harmonic distortion | 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD) |
| Damping Factor | 500 (8ohm, 20Hz-20kHz) |
| Input Sensitivity: Phono input | MM: 3.6 mV / 36 kohm MC (Low): 400 μV / 33 ohm MC (Mid): 400 μV / 100 ohm MC (High): 400 μV / 390 ohm |
| RIAA Deviation | 20 Hz - 20 kHz ±0.5 dB (MM/MC) |
| Phono Maximum Input | MM : 80mV MC : 8mV |
| Input Sensitivity: CD/LINE/RECORDER | 350 mV/41kohm (Unbalanced) 700 mV/36kohm |
| Input Sensitivity: Power Amp input | Unbalanced: 1.58V / 41kohm (Gain : 29dB) Balanced: 3.16V / 15kohm (Gain : 24dB) |
| SN Ratio | PHONO (MM): 88dB PHONO (MC): 76dB CD: 122dB Balanced: 122dB |
| Headphone Output Level | 130mW / 32 ohms |
| Tone Control | BASS : 50Hz ±10dB TREBLE : 15kHz ±10dB |
| Power Consumption | 270W 0.1W (at Standby) |
Audio/ Video |
|
| Phono Input | Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) PHONO (MC Low): 400 μV / 33Ω PHONO (MC Mid): 400 μV / 100Ω PHONO (MC High): 400 μV / 390Ω PHONO (MM): 3.6 mV / 39kΩ |

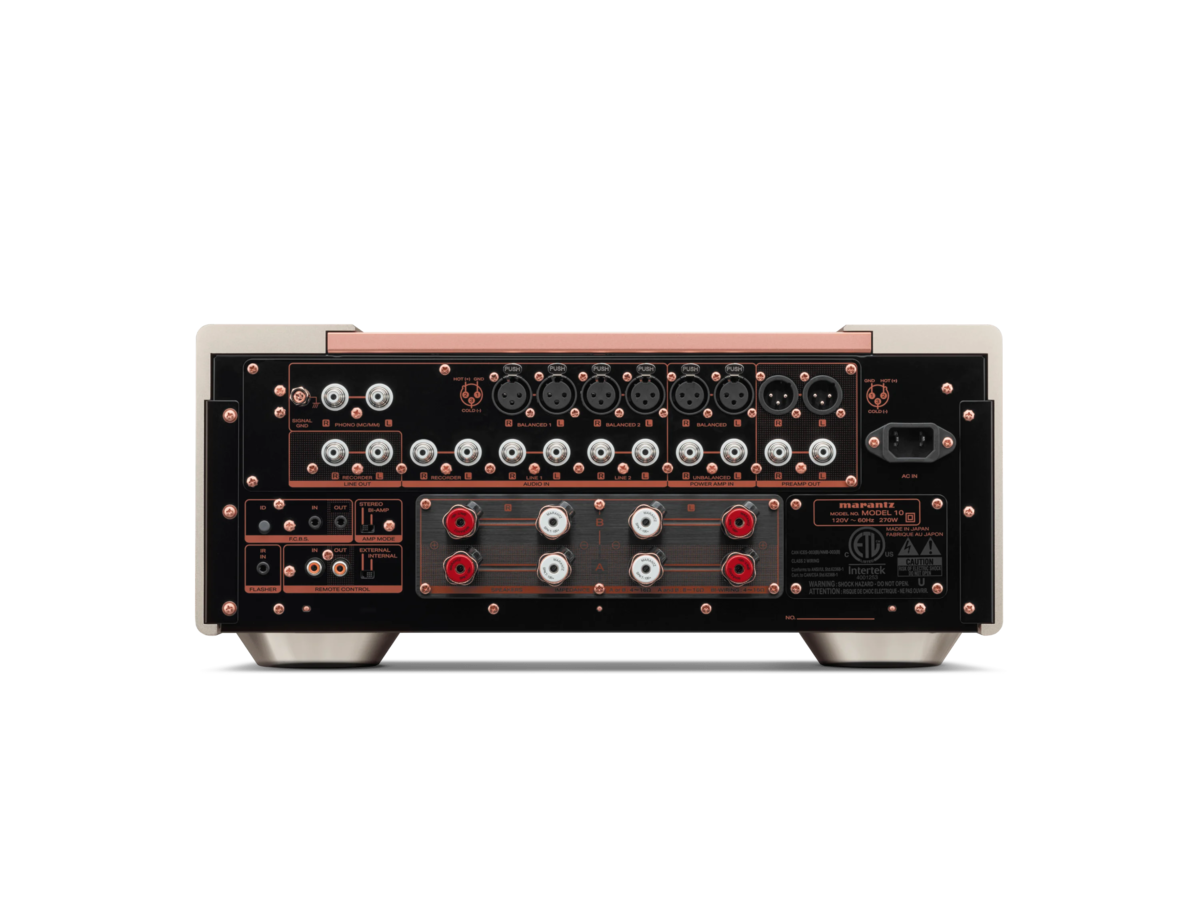

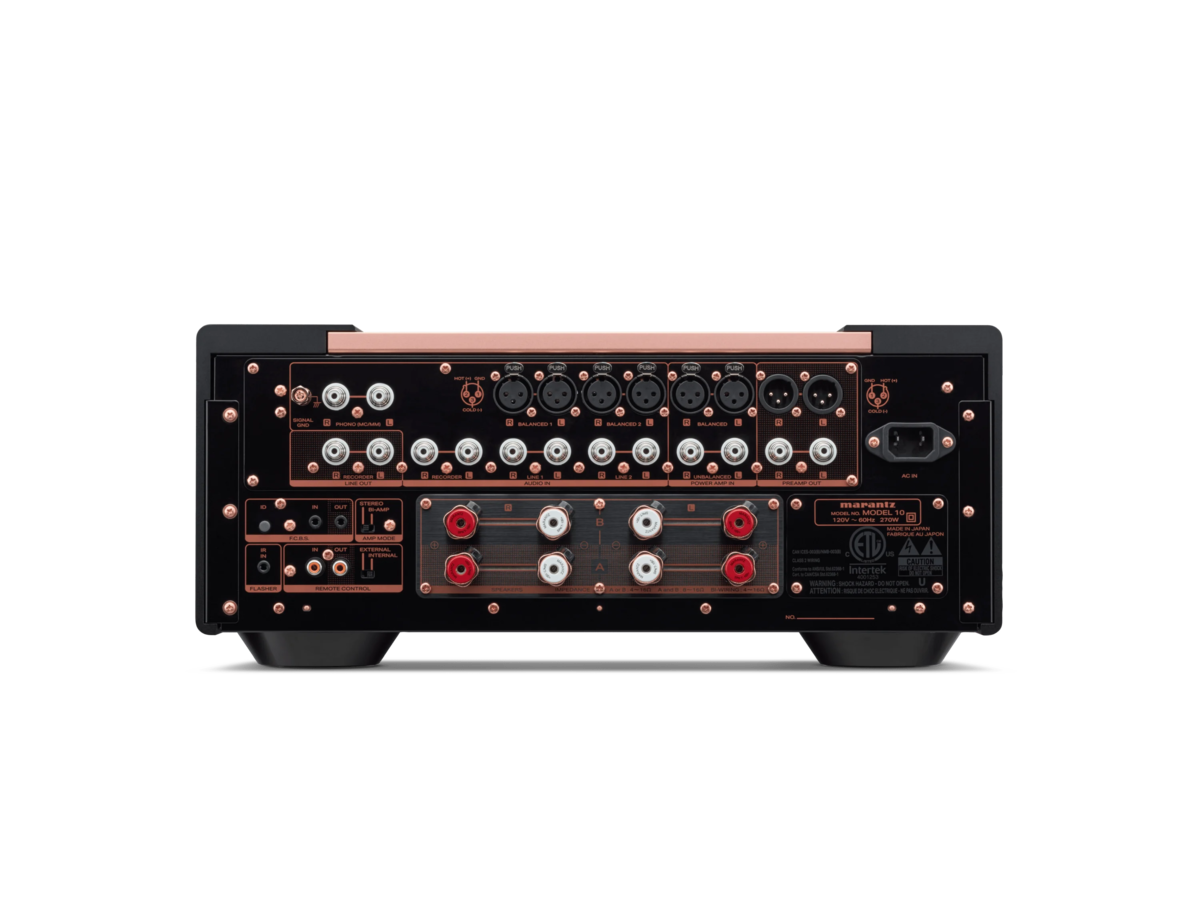

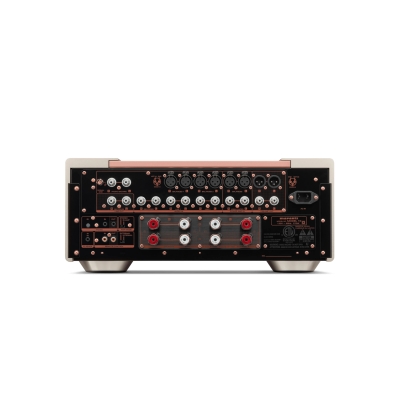

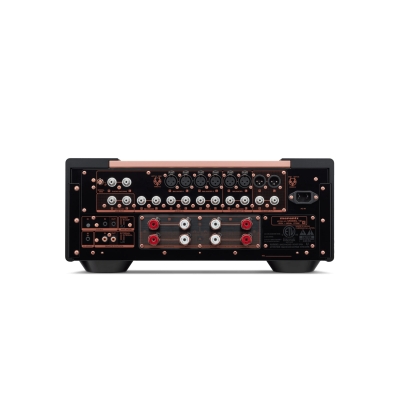

| Analog Input (include Phono) / REC Out (RCA) | 4 /1 (LINE1, LINE2, PHONO: Thick nickel plated independent terminals) (RECORDER: Thick nickel plated independent terminals) |
| Balanced XLR input | 2 |
| Power Amp Direct | Yes [RCA (Thick nickel plated independent terminals) / XLR] |
| Pre out | Yes [RCA (Thick nickel plated independent terminals) / XLR] |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Marantz Original SPKT-100+ 2 (High quality and high-purity copper plated) |
| Headphone Output | 1 (Turns off the speaker automatically when headphone is inserted) |
Control/ Other |
|
| Remote Control Bus Terminal | Yes (RC-5 In / Out) |
| Remote Internal / External Switch | Yes |
| Flasher Input | Yes |
| AC Inlet | Yes |
| Other | F.C.B.S. (Floating Control Bus System) |
| Remote Controller | 10 series Universal Remote control |
| Unit control (Button) | Tact Switch : 1 POWER |
| Unit control (Knob) | 2 VOLUME, INPUT SELECTOR |
| LED | POWER: 1 White Protection: 1 Orange Illumination (Edge): White Interior: White |

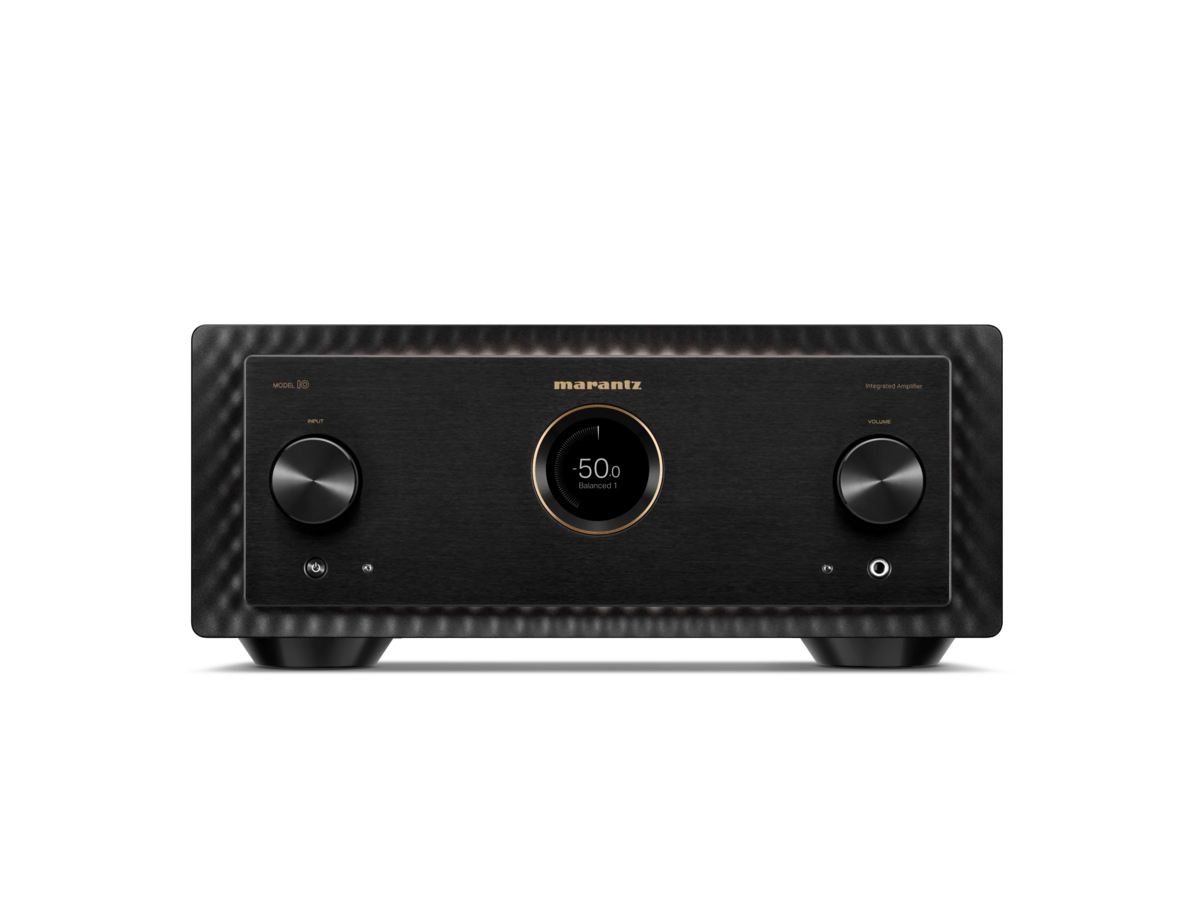

| Front Panel Display | New HD TFT Color Display |
| Dimmer for Front Display | 20 steps |
| Level meter | Yes (HD Display) |
| Volume Display | -infinity/-99.5dB - 0dB / 0.5 step (default) 0-100 / 0.5 step switchable |
| Last Function Memory | Yes |
| Auto Standby Mode | Yes |
| Remote Controller | RC004PMND |
| Battery | Yes (AAA ×2) |
| Power Cord | Yes (ALL region / Audio Grade / OFC) |
| Other | CoA card |
| Dimension (WxHxD) | 440mm × 192mm × 473mm |
| Weight | 33.7kg |
Производител:
Marantz
Модел:
Marantz MODEL 10
Размери - В / Ш / Д:
192mm × 440mm × 473mm
Тегло:
33.7
