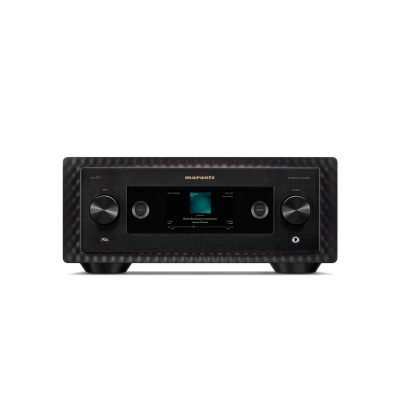

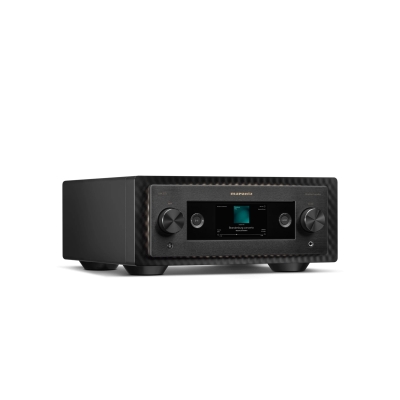

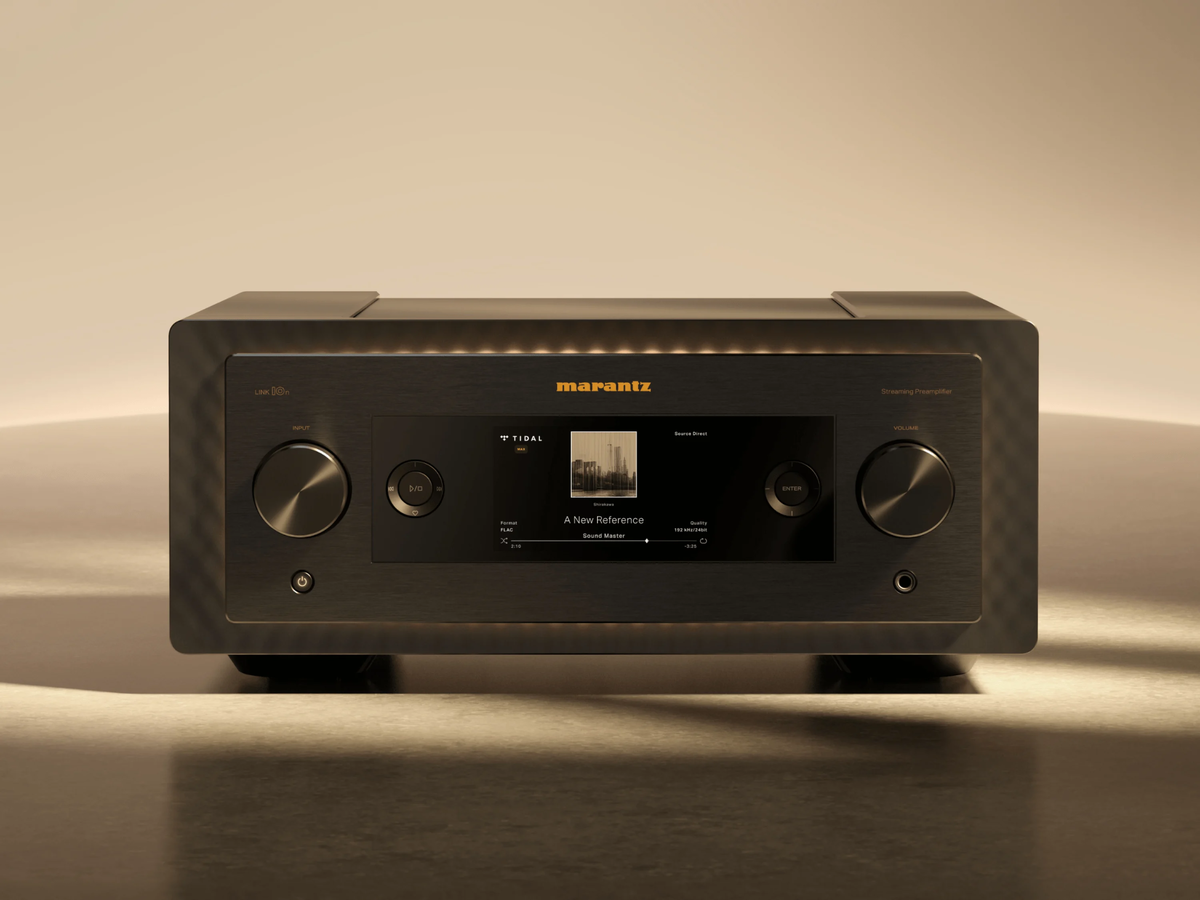

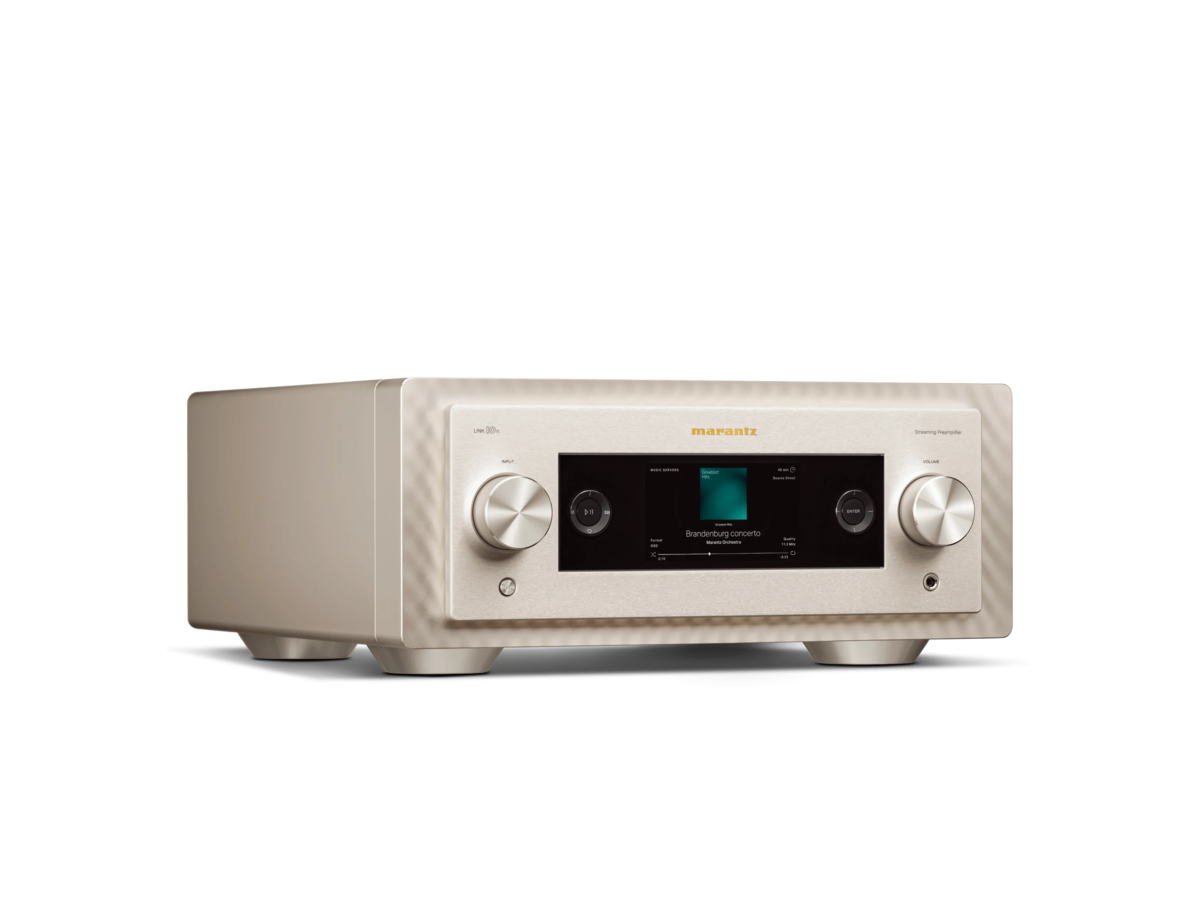

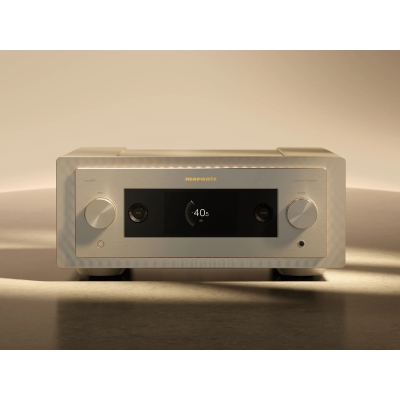

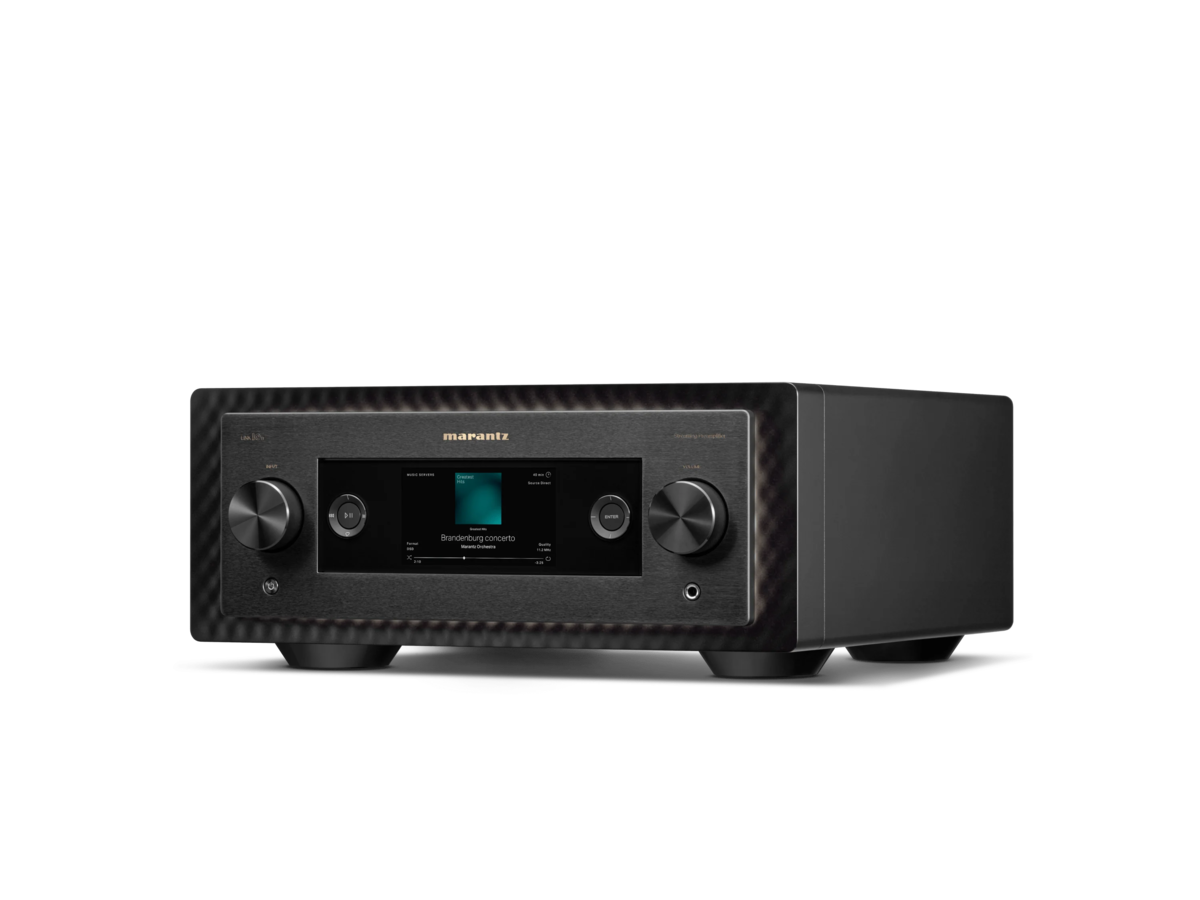

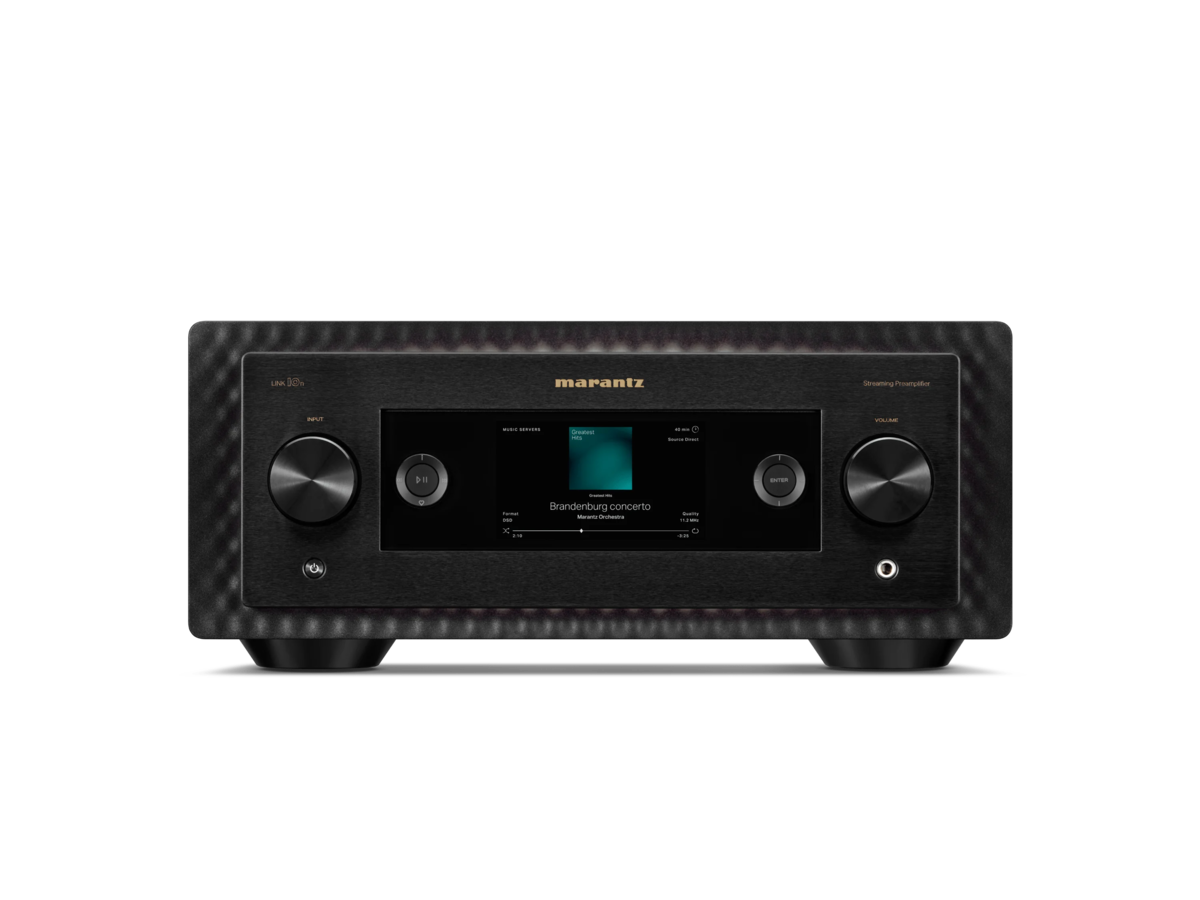

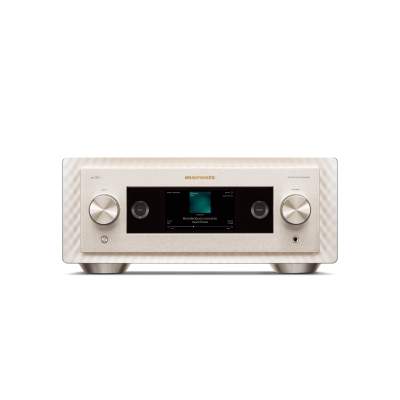

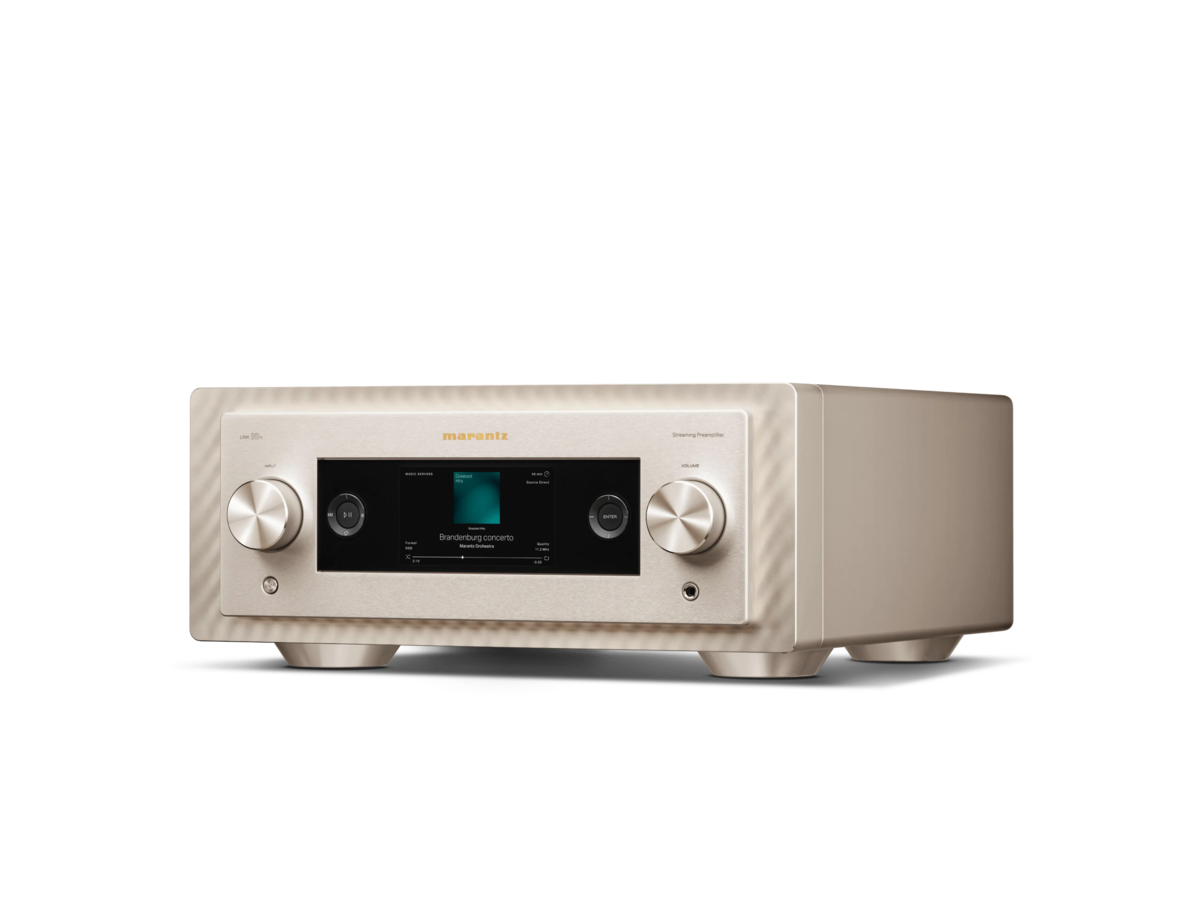

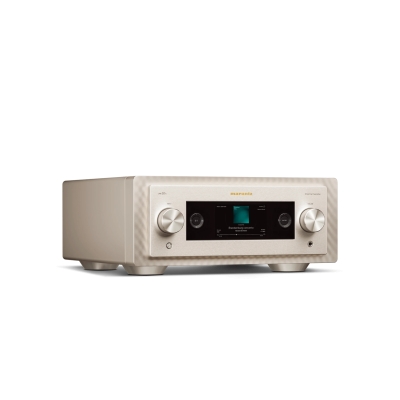

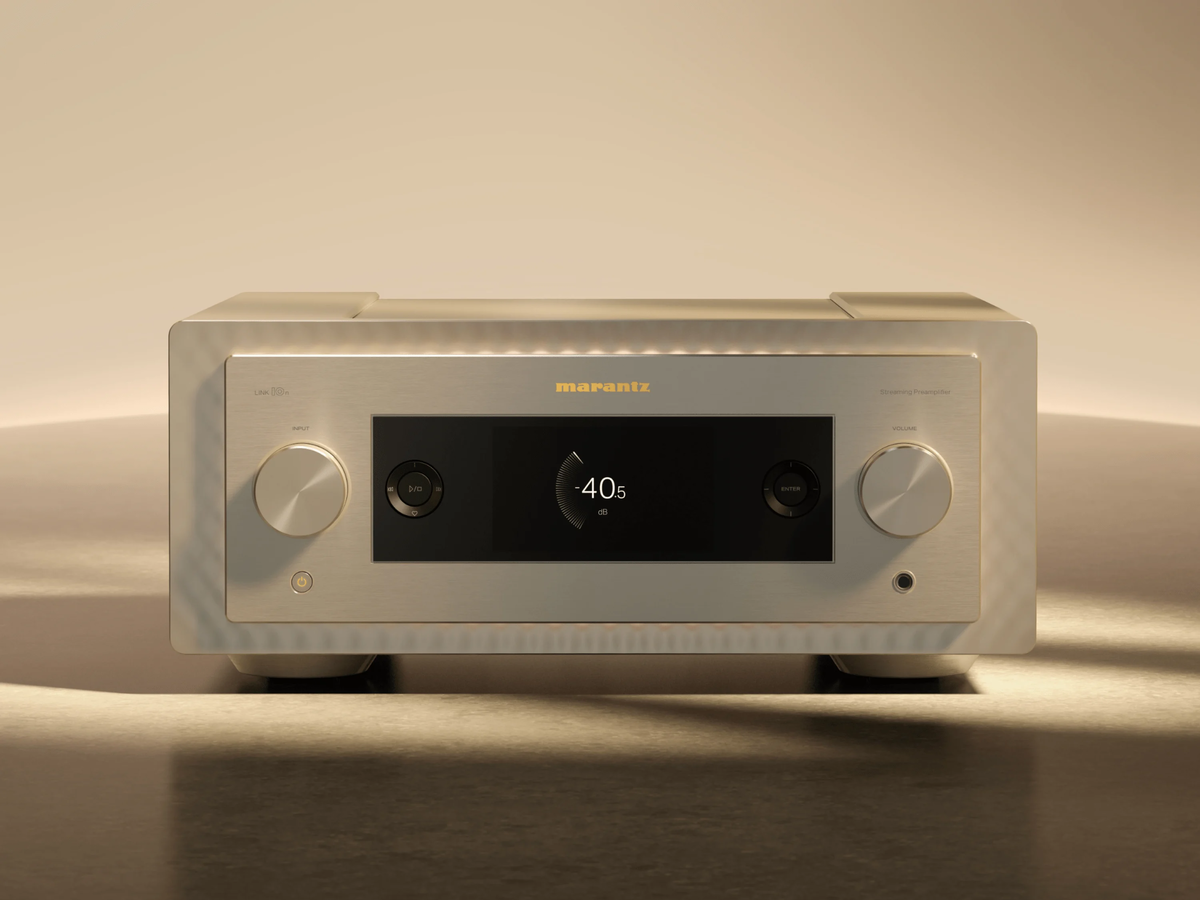

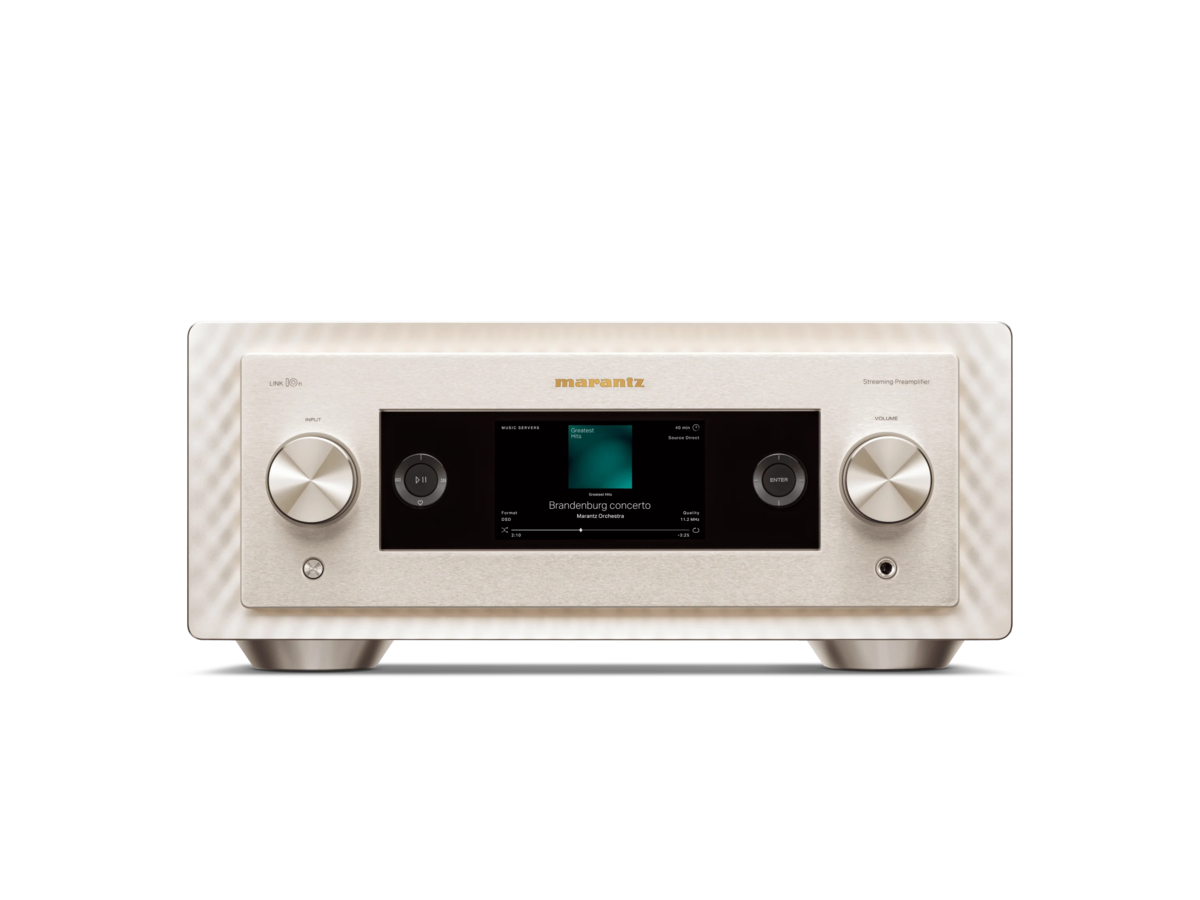

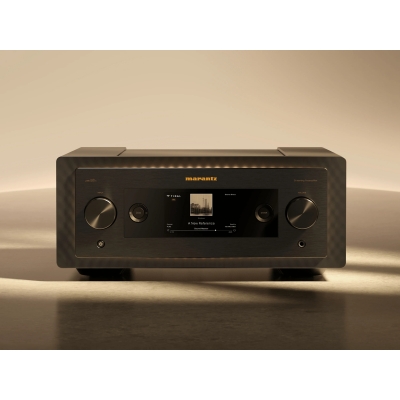

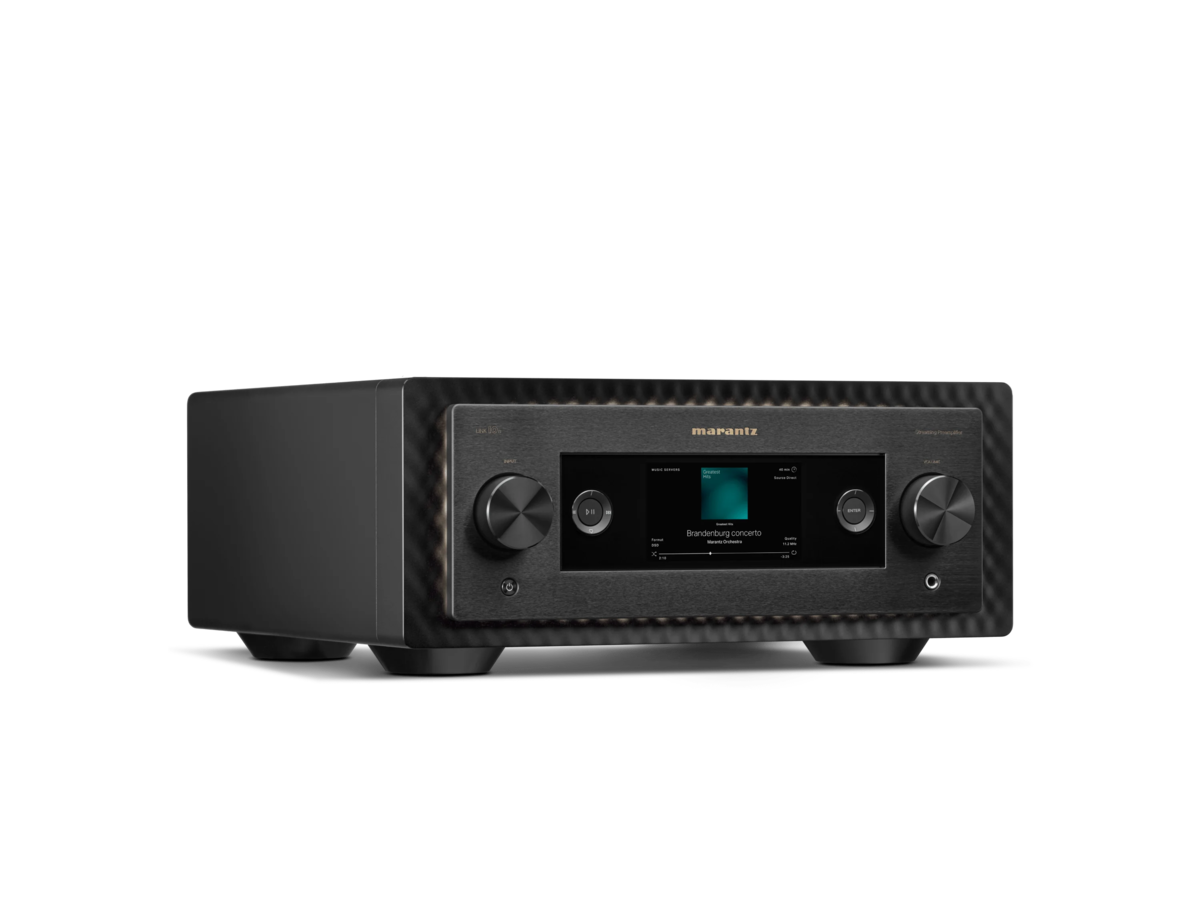

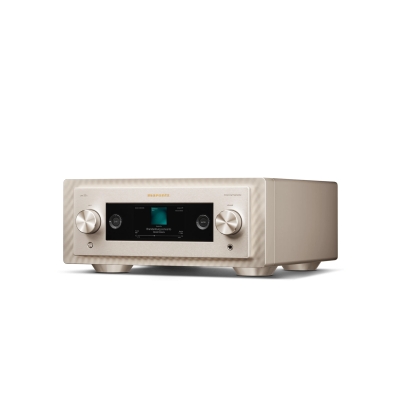

Marantz LINK 10n е 2.1-канален стрийминг предусилвател от референтен клас, базиран на HEOS™
LINK 10n е мрежов аудио плейър от референтно ниво, създаден с помощта на същите технологии и майсторска изработка, които утвърдиха MODEL 10 и SACD 10 като лидери в своя клас.
- Поддръжка на аудио с висока резолюция (Hi-Res)
- Вградена технология HEOS®
- Нов цветен HD TFT дисплей с висока разделителна способност
- Най-новите HDAM и MM схеми
- HDMI ARC с поддръжка на CEC
- Изход за субуфер (2.1-канална конфигурация)
Гаранция 2 години
| General | |
|---|---|
| Front (Centre) Pane | Aluminium |
| Back-shell | Aluminium |
| Front panel illumination | Yes (All sides, Dimmer) |
| Side cover | Aluminium (Thickness: Max 15.8mm) |
| Top cover (Centor) ventilation hole material | No |
| Interior illumination | No |

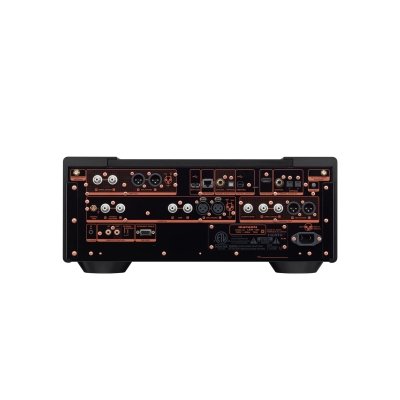

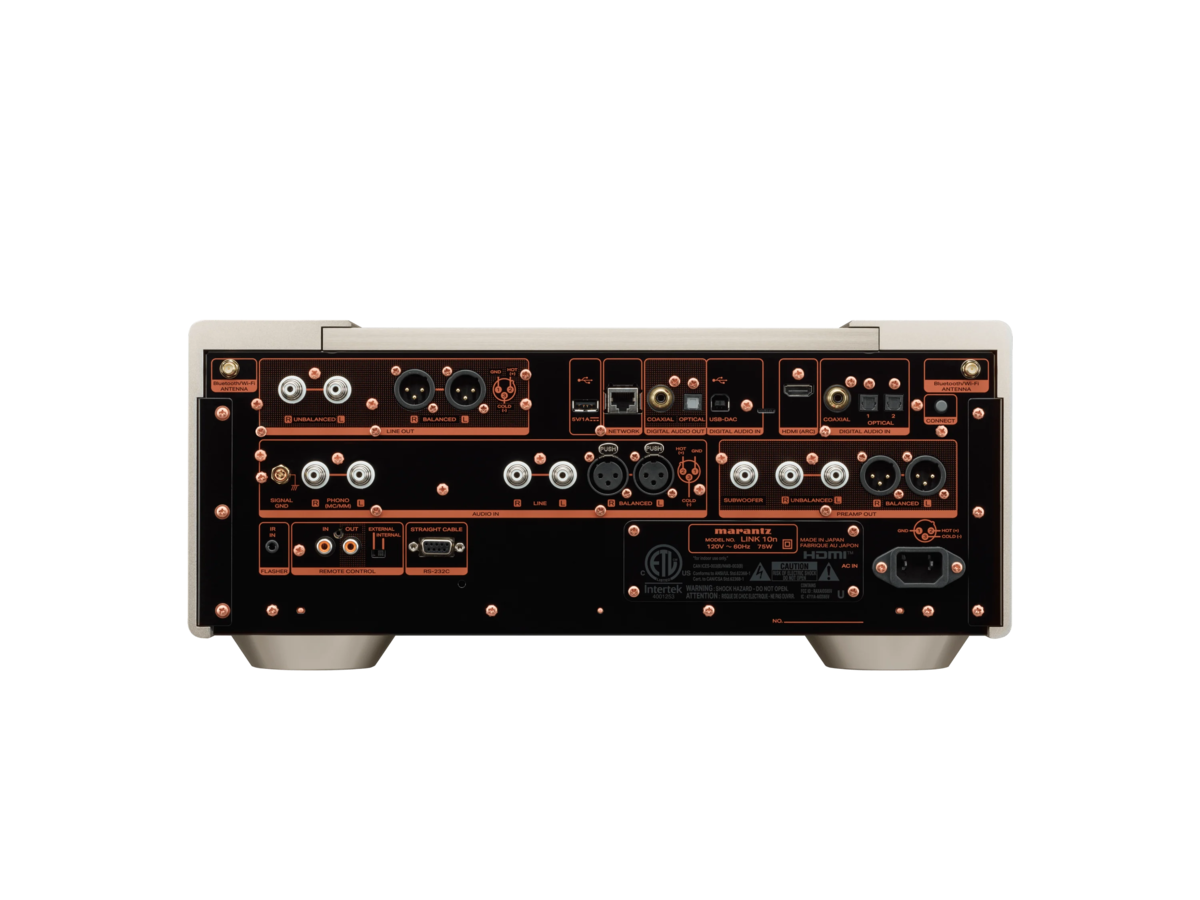

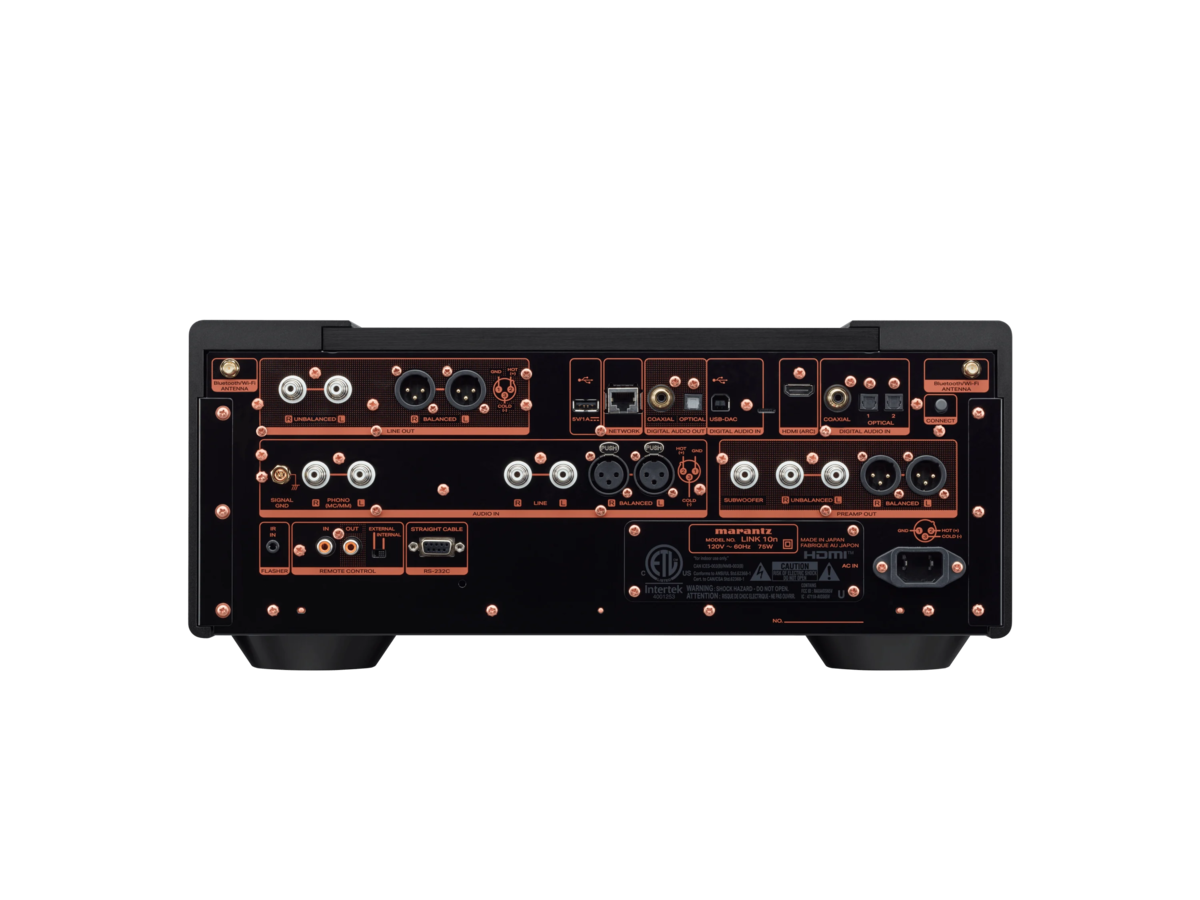

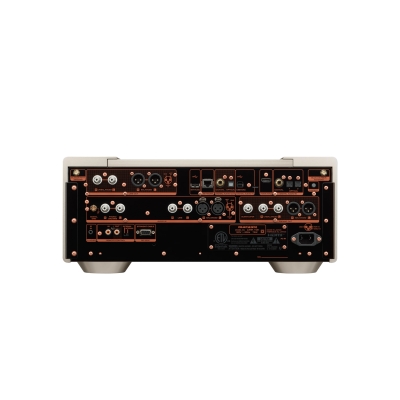

| Rear Panel | Triple layer Copper-plated |
| Chassis Material | Copper-plated |
| Bottom Layer / Bottom plate | Copper-plated |
| Volume Knob | Solid aluminium (Bearing construction) |
| Input Selector | Solid aluminium (Bearing construction) |
| Foot | Solid aluminium with copper |
| Dimensions (WxHxD) | 440mm x 192mm x 472mm |
| Weight | 33.3kg |
Audio |
|
| Frequency Response | PCM 2Hz–50kHz (-3dB) |
| Harmonic distortion | PCM 0.0004% |
| S/N | PCM 0.0004% |
| Dynamic range | PCM 0.0004% |
| Line Output Level | UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms |
| Headphone Output Level | 130mW / 32 ohms |
| Frequency Response (analogue input) | 5 Hz–100 kHz (+0dB/-3 dB) |
| Harmonic distortion (analogue input) | 0.001% (20Hz–20kHz) |
| S/N | PHONO (MC) : 76dB HONO (MM) : 88dB BALANCED : 122dB LINE : 122dB |
| Phono Input sensitivity | MM : 8mV MC : 80mV |
| Phono Input impedance | MC Low : 32 ohms MC Mid : 100 ohms MC High : 390 ohms MM : 39 kOhms |
| Power Consumption | 7W Less than 0.3W (at Standby) Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB) |
Audio Features |
|
| Output Circuit | New HDAM |
| Power Transformer | Toroidal |
| Pre-Amplifier Circuit | New HDAM High Grade Full balance |
| Volume | Electric (MUSES 72323) Variable gain |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric |
| Headphone Circuit | Discrete |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| H/P On/Off Setting | H/P Off automatically, when in use |
| DAC Circuit | New MMM-Conversion |
| Dither | MMM-Stream (Dither 1, 2, Off) |
| Noise Shaper | MMM-Stream Balanced, Natural, Dynamic Music, Dynamic Voice) |
| Digital Filter | MMM-Stream Filter 1, 2 Selectable |
| Jitter Reducer | Yes |
| DAC Master Clock Design (No Support for Network Playback) | Yes |
| Asynchronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) |
| Fixed Analog Output (RCA) | Cinch × 1 Thick nickel-plated independent terminals |
| Pre / Variable Audio Output (RCA) | Cinch × 1 Thick nickel-plated independent terminals |
| Fixed Balanced XLR Output | Yes (1 Pair) |
| Pre/ Variable Balanced XLR Output | Yes (1 Pair) |
| RCA Input | Cinch × 1 Thick nickel-plated independent terminals |
| Balanced XLR Input | Yes (1 Pair) |
| Phono input | Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) Thick nickel-plated independent terminals |
| Optical input / output (Maximum Support) | 2 / 1 (on/off switchable) 44.1 kHz - 192 kHz |
| Coaxial input / output (Maximum Support) | 1 / 1 (on/off switchable) 44.1 kHz - 192 kHz |
| HDMI input / output | No / Yes (ARC) |
| Headphone Output | Yes (Φ6.3 ×1) |
| Subwoofer | Yes with LP filter adjustable |
Easy to Use |
|
| App | HEOS app |
| Remote Controller | 10 series universal Remote control |
| Front Panel Display | New HD TFT Colour Display |
| Display Language | N: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian) U: (English/ French/ Spanish) K: ( Simplified Chinese/English) F: (Japanese/ English) |
| Dimmer for Front Display | 20 steps |
| Level meter | No |
| Volume Display | 0 –100 / 0.5 step (default)-infinity/-99.5dB - 0dB / 0.5 step switchable |
| Voice Assistant | Apple Siri Google Assistant |
| Control with App via Network Player (Use Remote Control Bus) | No |
| External Amp Control with App (Use Remote Control Bus) | Yes |
| Synchronously turn on amplifier and switch the input (Use Remote Control Bus) | Yes |
| HDMI CEC | Yes |
| Remote Controller | RC004PMND |
| Battery | Yes (AAA ×2) |
| Power Cord | Yes (ALL region : Audio Grade : OFC) |
| Other | Stereo RCA Cable ×1 Remote connector cable ×1 CoA card |
Производител:
Marantz
Модел:
Marantz LINK 10n
Размери - В / Ш / Д:
192mm x 440mm x 472mm
Тегло:
33.3
