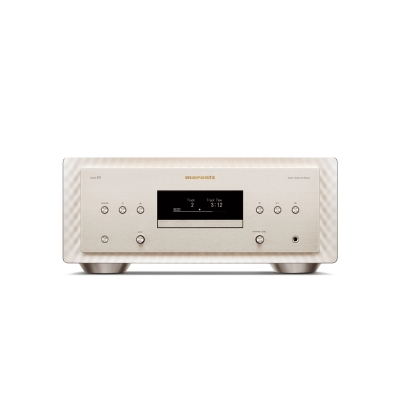

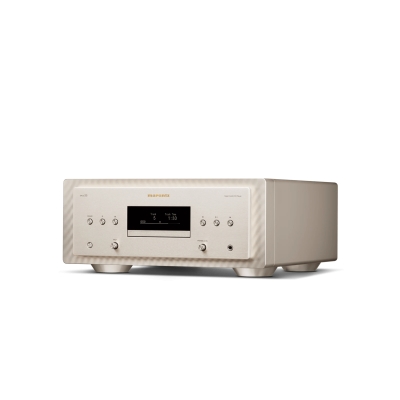

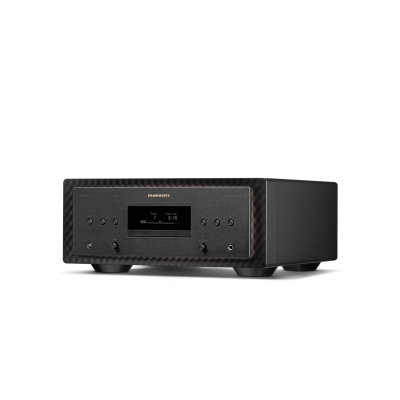

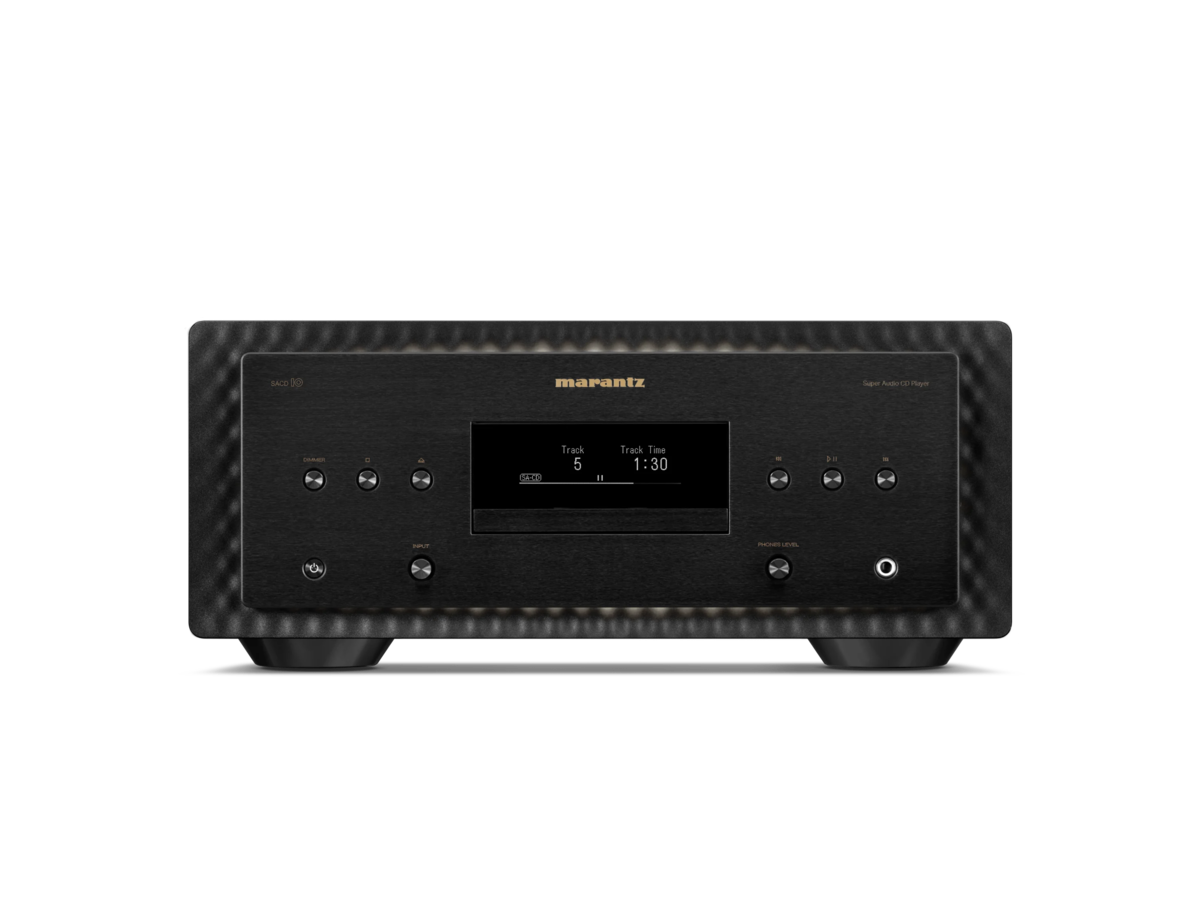

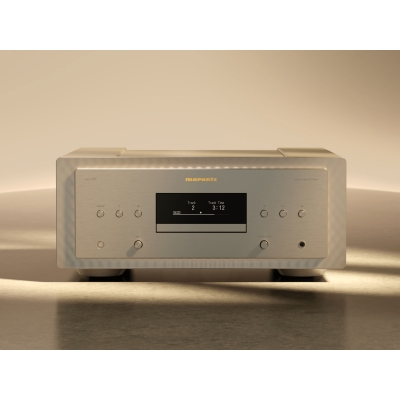

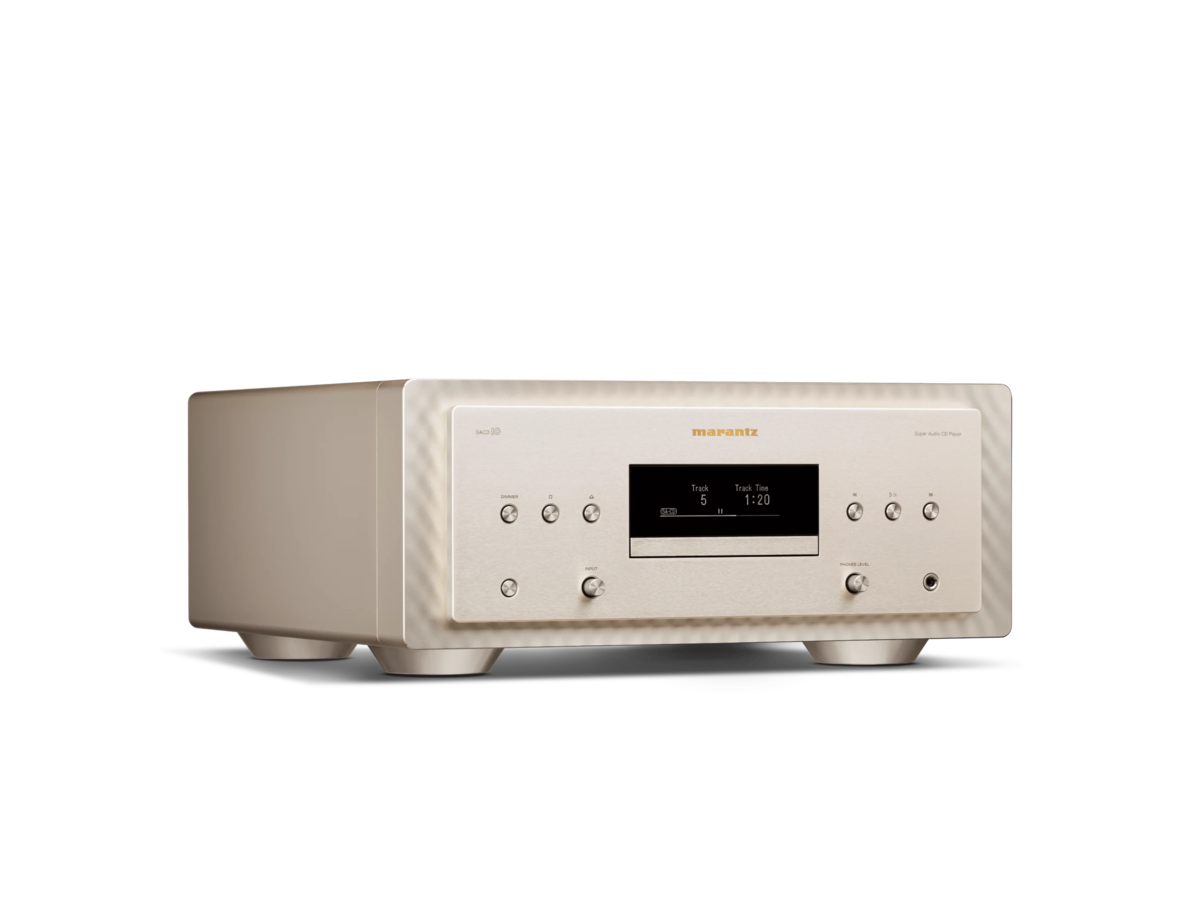

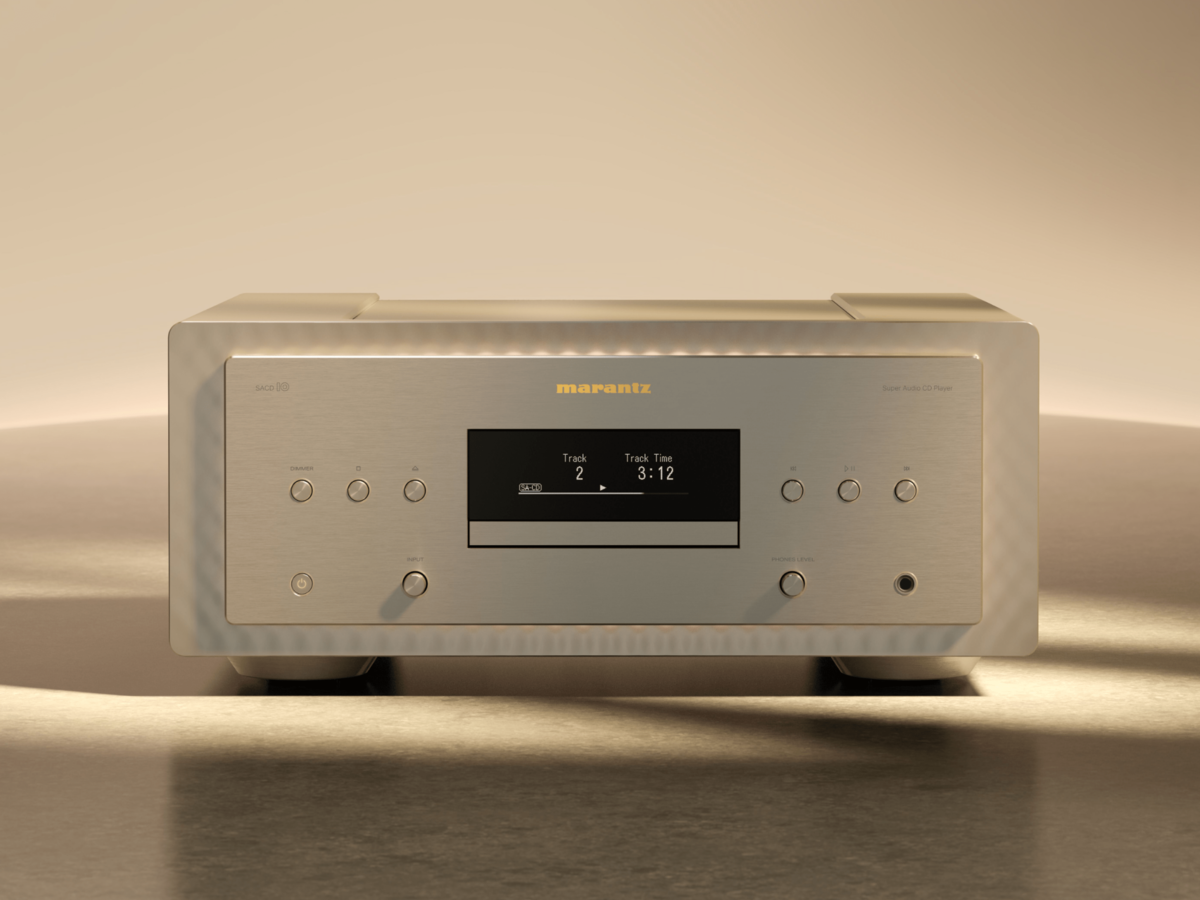

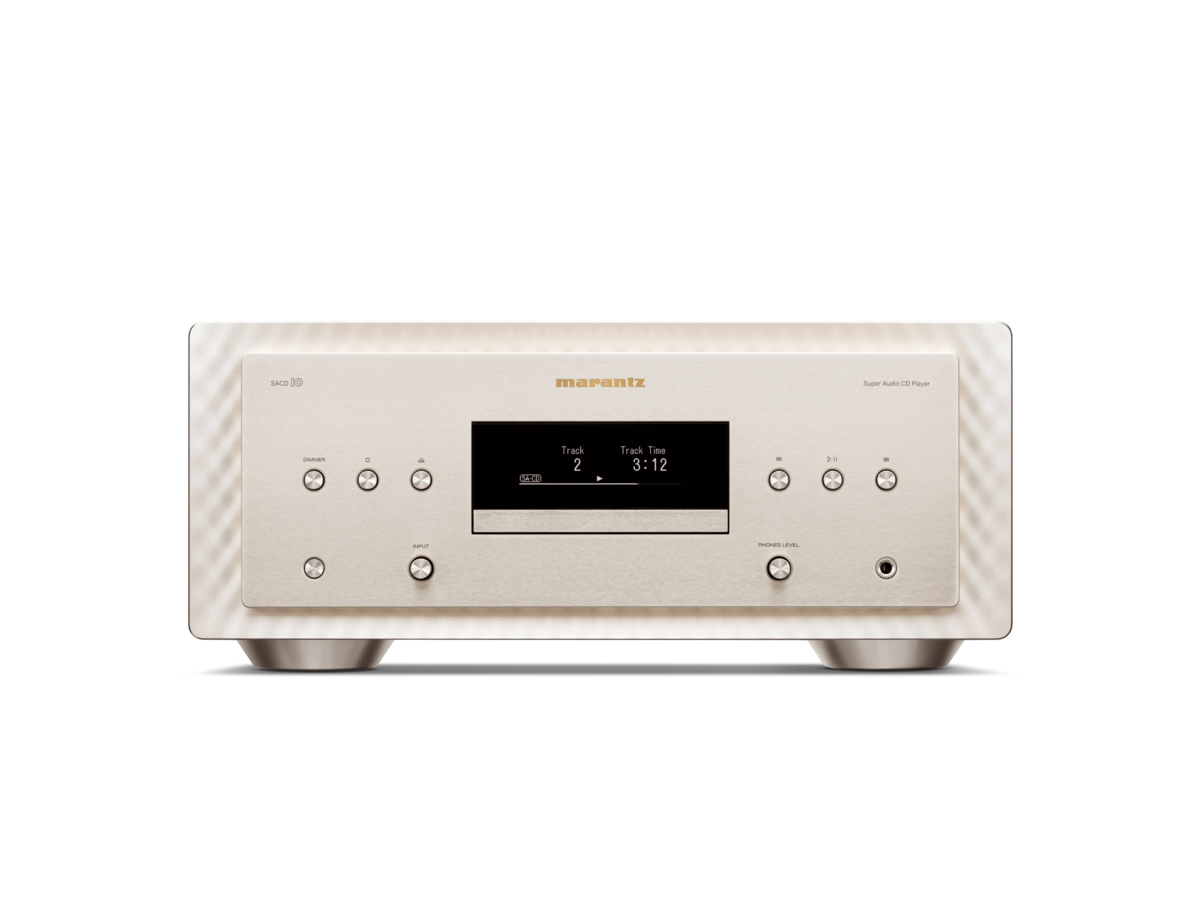

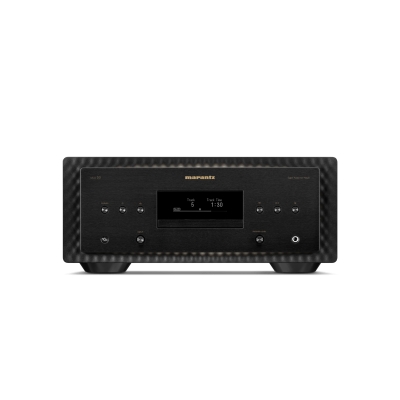

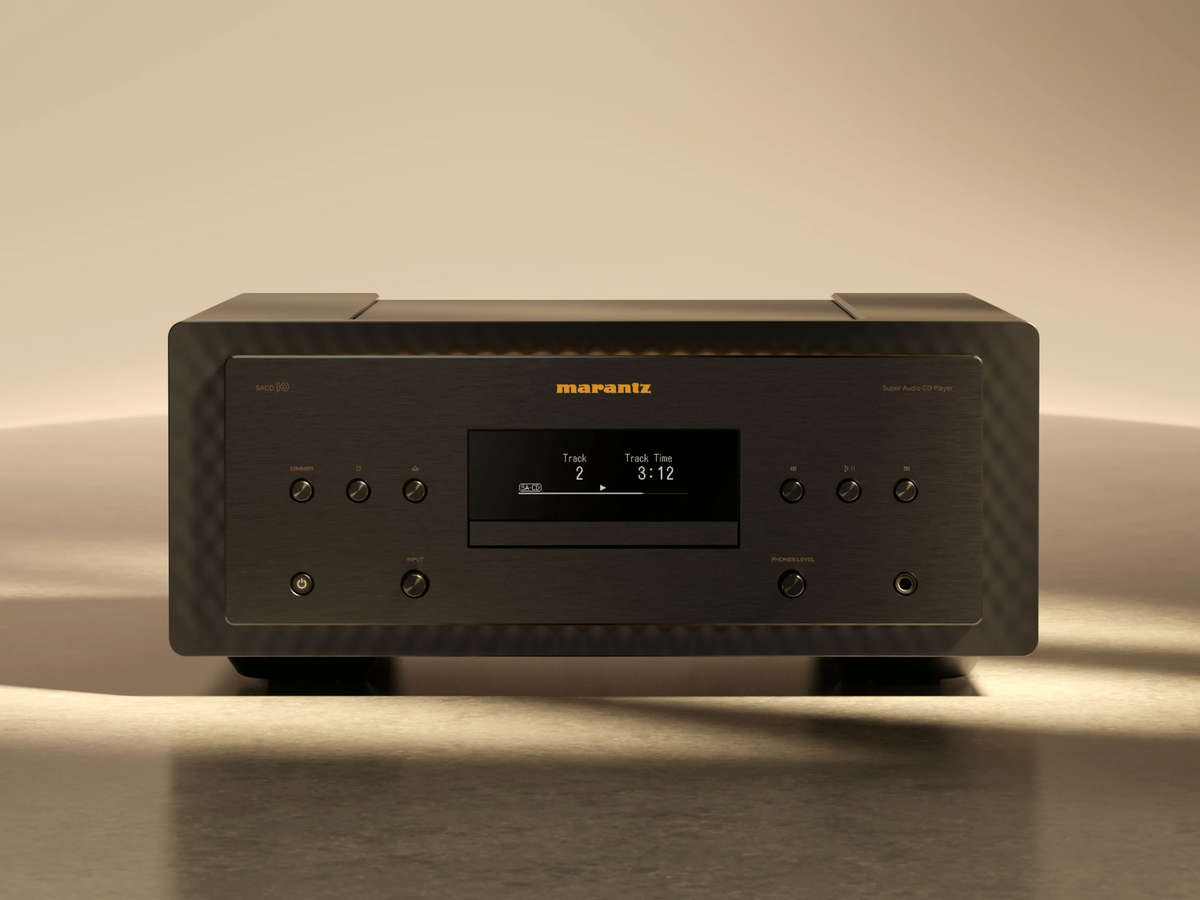

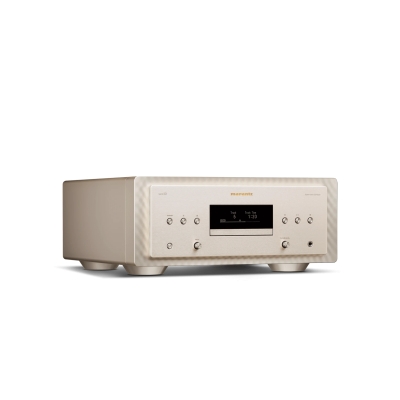

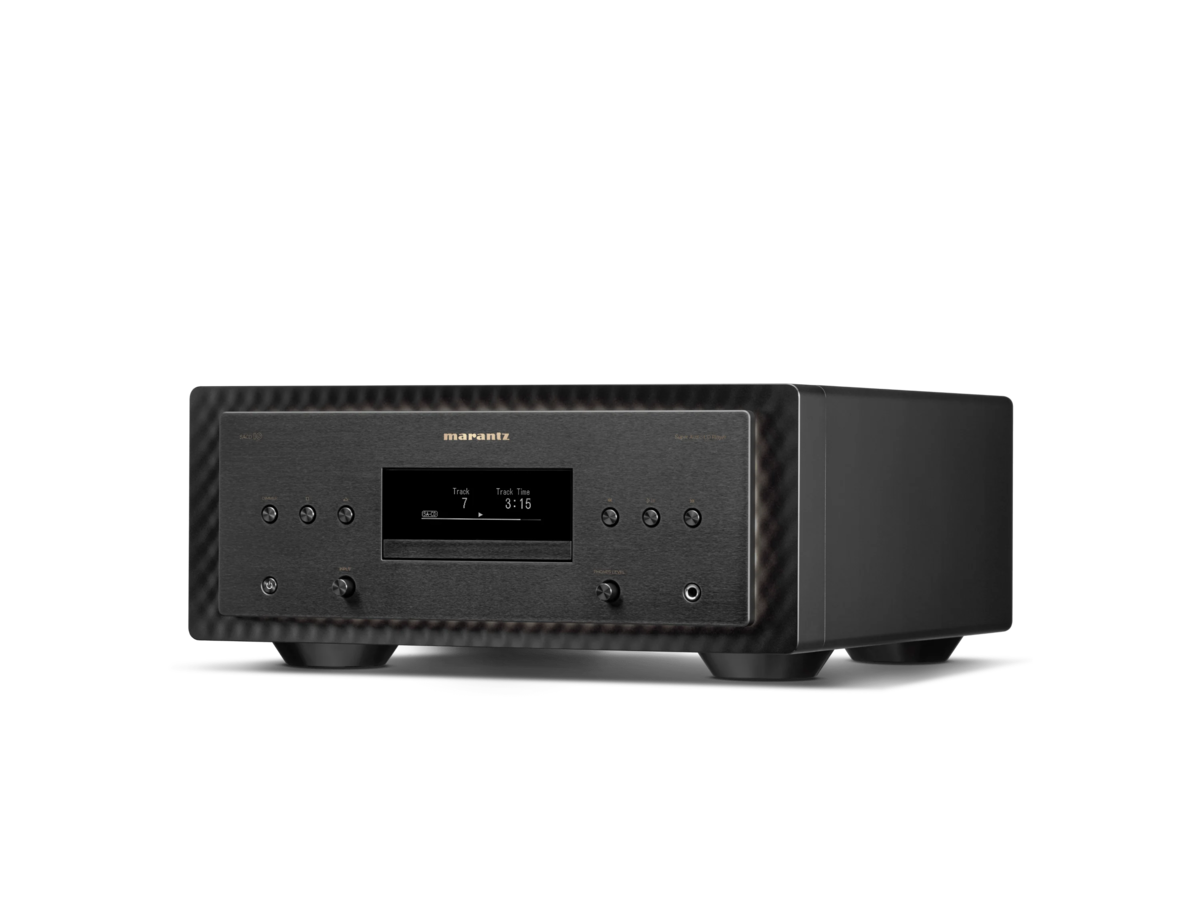

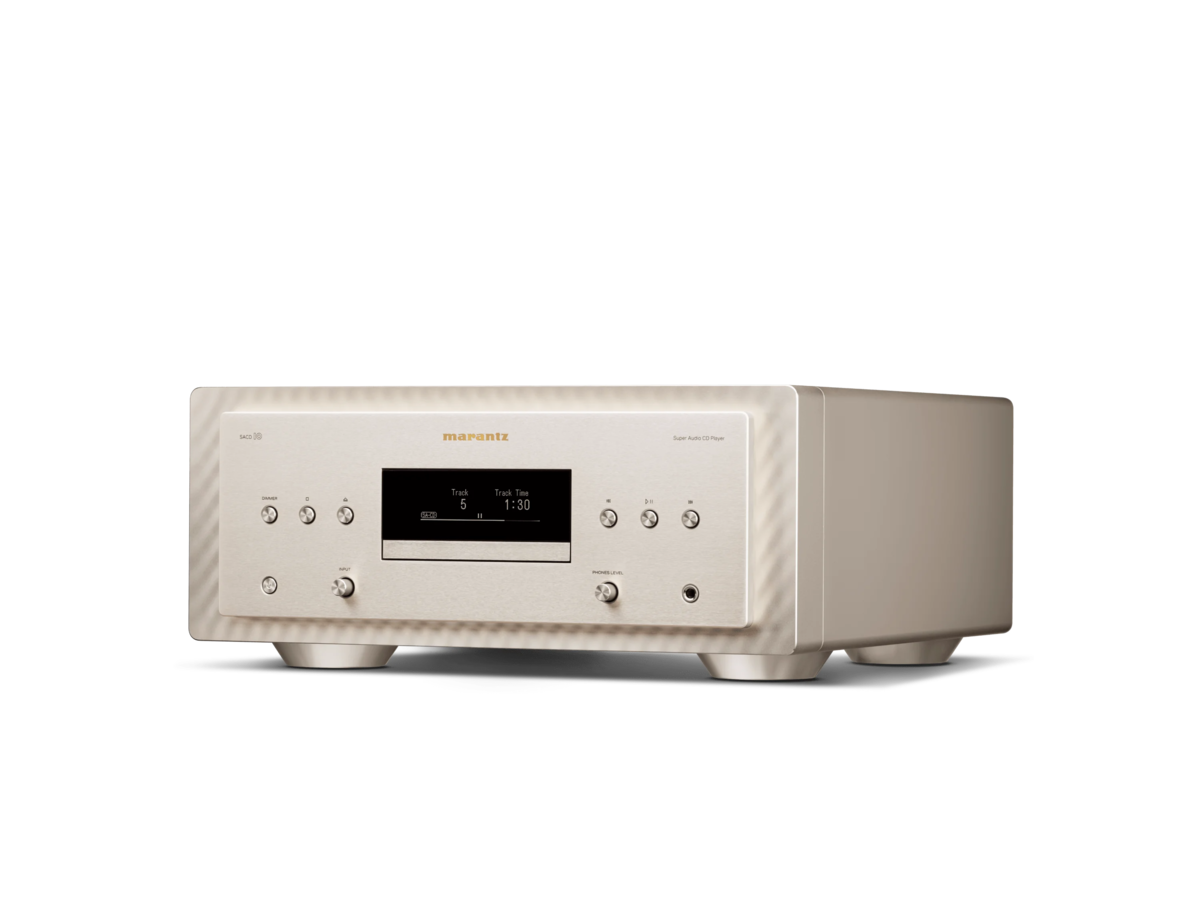

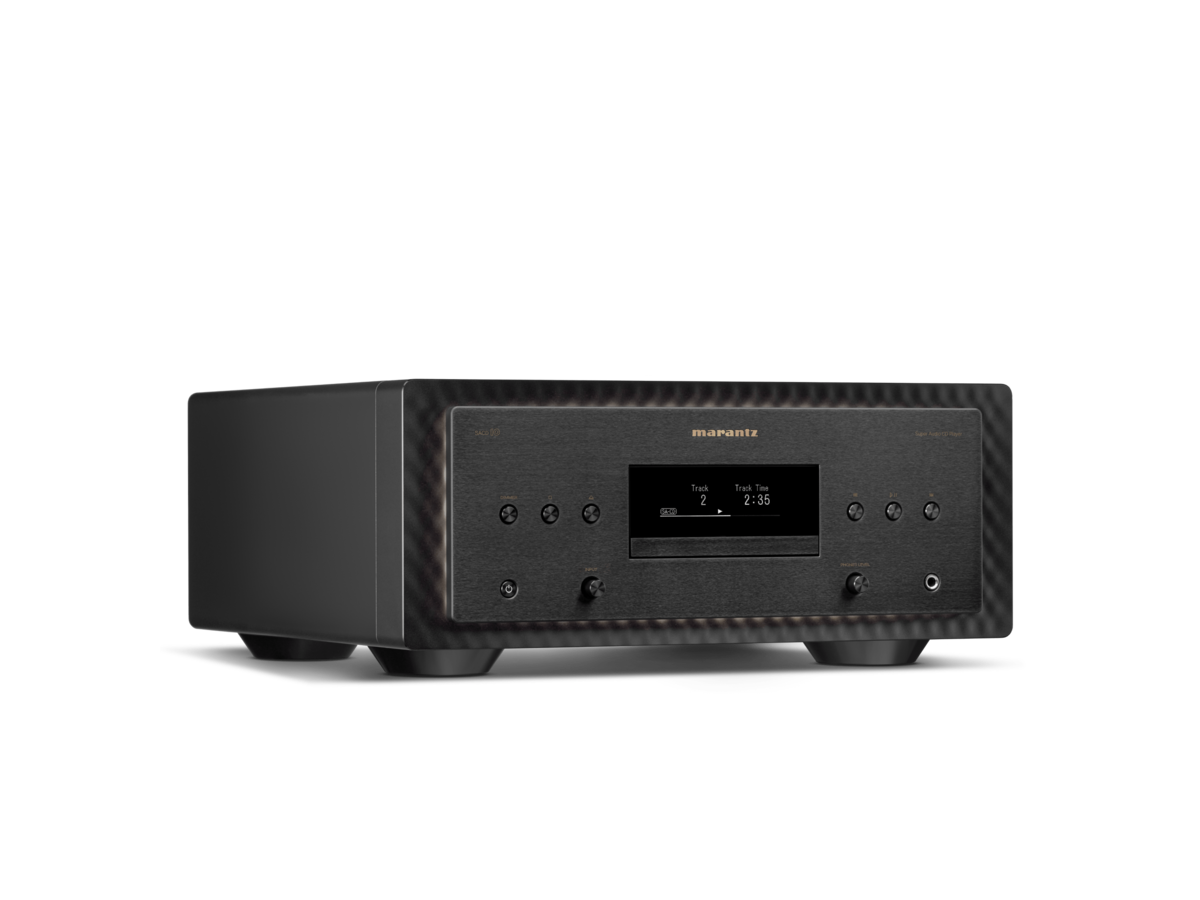

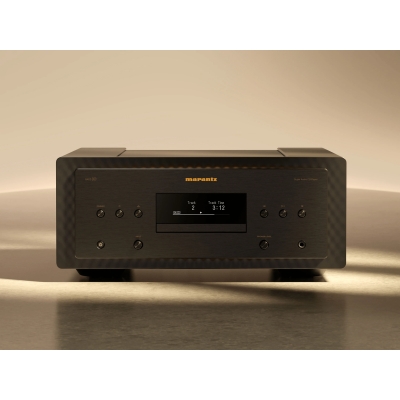

SACD 10 e високопроизводителен референтен SACD плейър с транспортен механизъм SACDM-3, цифрови входове и изходи.
Еталонният модел SACD 10 е създаден да бъде върхово постижение, като използва изцяло разработения от Marantz транспортен механизъм SACDM-3 за максимално потискане на резонанса.
- Транспортен механизъм Marantz SACDM-3
- Поддръжка на DSD 256 и PCM 384 / 32
- Усилвател за слушалки
- Двойно захранване с тороидални трансформатори

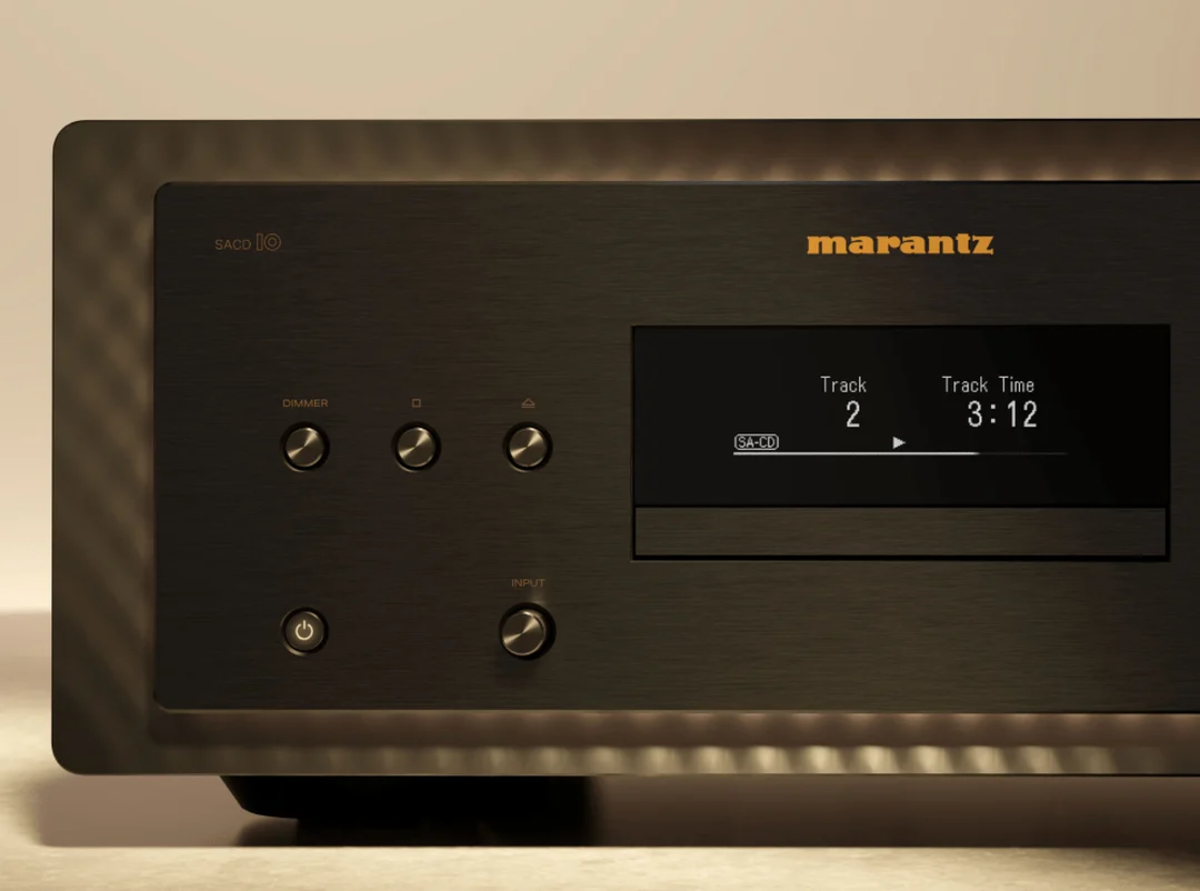

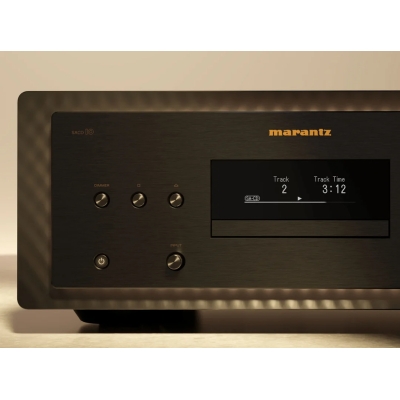

- OLED дисплей

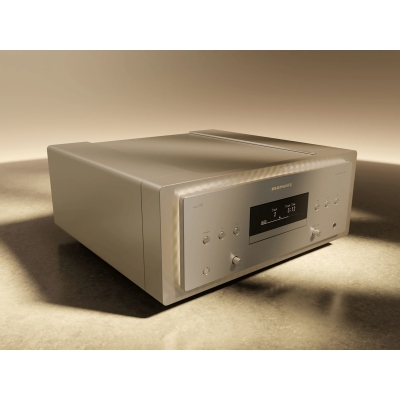

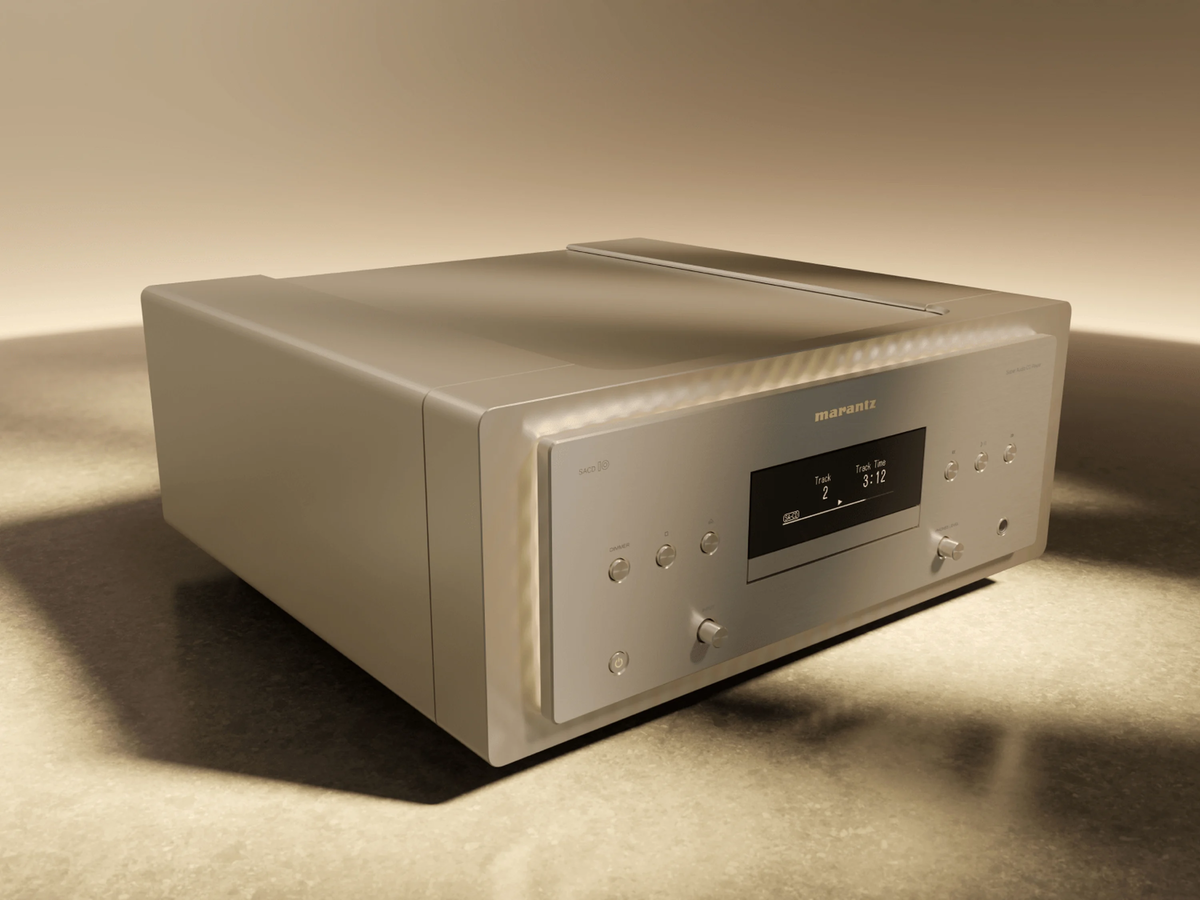

- Индустриален дизайн на Marantz
Гаранция 2 години
| General | |
|---|---|
| Front (Centre) Pane | Aluminium |
| Back-shell | Aluminium |

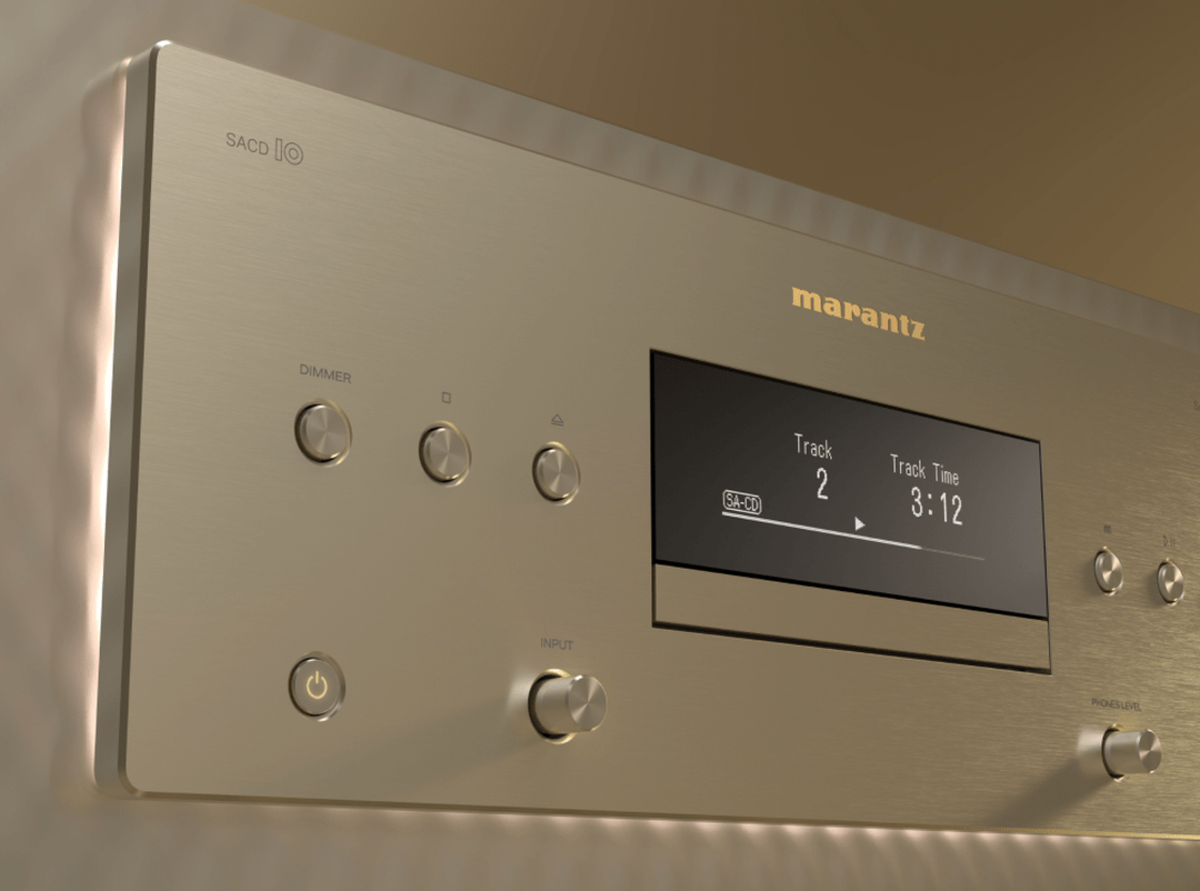

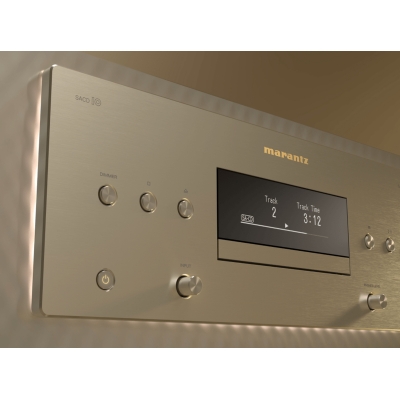

| Front panel illumination | Yes (All sides, Dimmer) |
| Side cover | Aluminium (Thickness: Max 15.8mm) |
| Top cover | Aluminium (Thickness: 12mm) |
| Bottom Layer / Bottom plate | Triple layer copper-plated |
| Foot | Solid aluminium with Copper |
| Dimensions (WxHxD) | 440mm x 192mm x 442mm |
| Weight | 33kg |
Audio |
|
| Frequency Response | SACD: 2Hz–50kHz (-3dB) CD: 2Hz–20kHz (±1.0dB) |
| Harmonic distortion | SACD: 0.0004% CD: 0.0015% |
| S/N | SACD: 118dB CD: 116dB |
| Dynamic range | SACD: 112dB CD: 98dB |
| Line Output Level | UNBALANCED : 2.0Vrms BALANCED : 4.0Vrms |
| Headphone Output Level | 130mW / 32 ohms |
| Power Consumption | 55W Less than 0.3W (at Standby) |
Audio Features |
|
| Output Circuit | New HDAM |
| Power Transformer | Toroidal |
| Headphone Circuit | Discrete |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| H/P On/Off Setting | H/P Off automatically, when in use |
| DAC Circuit | New MMM-Conversion |
| Dither | MMM-Stream (Dither 1, 2, Off) |
| Noise Shaper | MMM-Stream (Balanced, Natural, Dynamic Music, Dynamic Voice) |
| Digital Filter | MMM-Stream Filter 1, 2 Selectable |
| Jitter Reducer | Yes |
| DAC Master Clock Design (No Support for Network Playback) | Yes |
| Asynchronous mode (for USB-B input) | Yes |
| Isolator (for USB-B input) | Yes (Complete Isolation System Duo) |

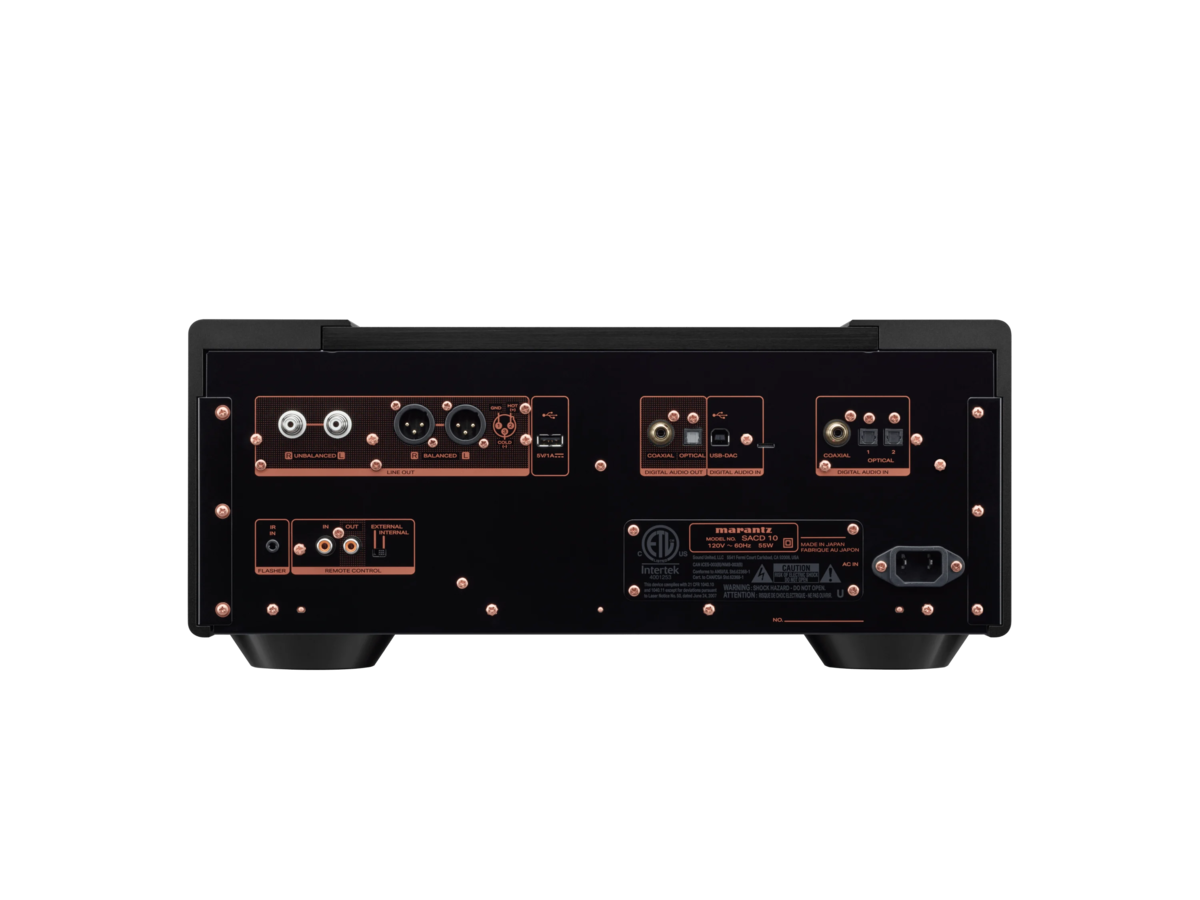

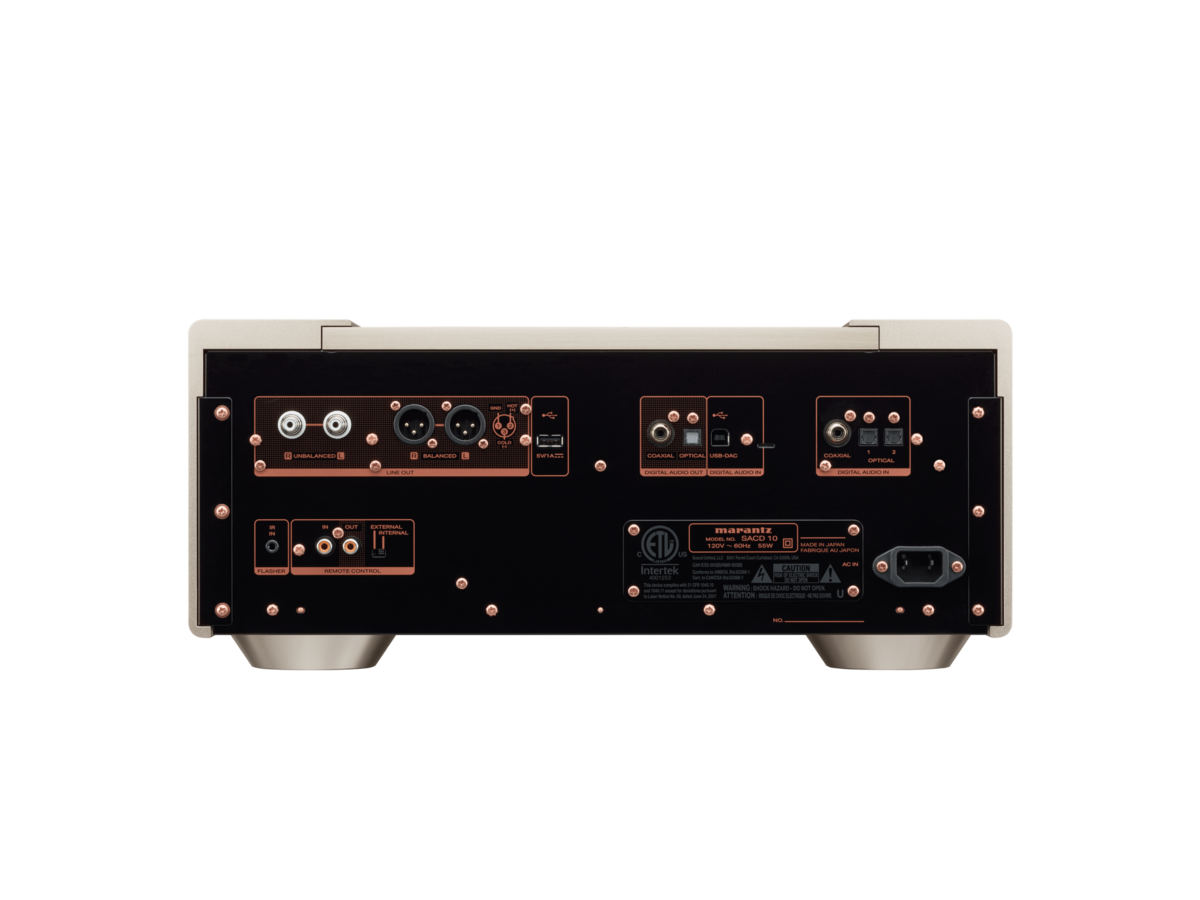

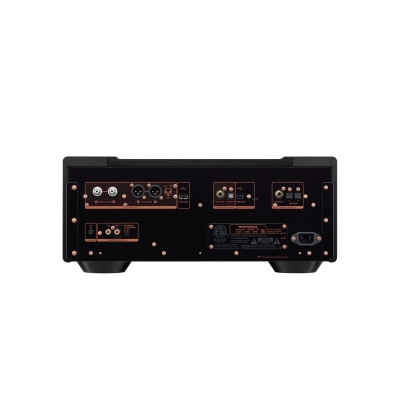

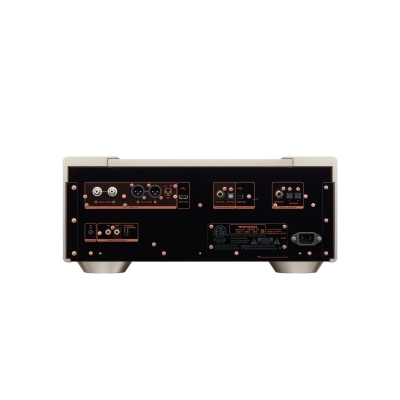

Connectivity |
|
| Fixed Analog Output (RCA) | Cinch × 1 Thick nickel plated Marching copper L/R independent terminals |
| Fixed Balanced XLR Output | 1 |
| Optical input / output (Maximum Support) | 2/1 4.1 kHz - 192 kHz |
| Coaxial input / output (Maximum Support) | 2/1 4.1 kHz - 192 kHz |
| Headphone Output | Yes (φ6.3 x 1) |
| Remote Control Bus Terminal | Yes |
| Remote Internal / External Switch | Yes |
| AC Inlet | Yes |
| Accessory Box | Yes |
| Remote Controller | RC004PMND |
| Battery | Yes (AAA ×2) |
| Power Cord | Yes (ALL region : Audio Grade : OFC) |
| Other | Stereo RCA Cable ×1 Remote connector cable ×1 oA card |
Производител:
Marantz
Модел:
Marantz SACD 10
Размери - В / Ш / Д:
192mm x 440mm x 442mm
Тегло:
33
